Diy plastic extruders

Types of DIY plastic extruders

Suppliers offer these DIY plastic extruders in bulk as they are instrumental in the 3D printing process.

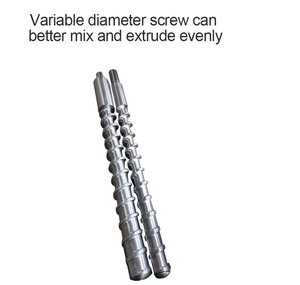

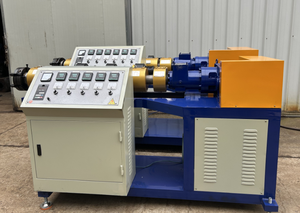

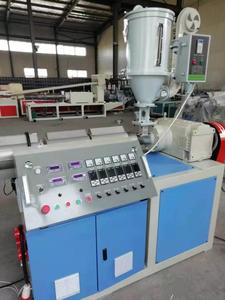

• Screw Extruder

  The screw extruder is the most common type used by 3D printing business owners. It uses a rotating screw to transport, melt, and extrude the plastic material. The screw's rotation is responsible for consolidating and forcing the molten plastic through the nozzle after the plastic filament has been heated to the required temperature in the barrel. These high-demand extruders are usually made of metal and other durable materials.

• Auger Extruder

  Similar to screw extruders, auger filament extruders use an auger screw to mix and extrude thermoplastics. They are mostly used for smaller production runs or experimental projects. Auger extruders are also suitable for processing a wide range of materials, including rigid plastics and plastic waste. They are also known for their efficient operation.

• Direct Drive Extruder

  Direct drive extruders are integrated with the 3D printer's hot end. Their close proximity enables them to provide a strong filament push and accurate control over filament extrusion. This makes them ideal for printing filament with flexible materials, as they prevent filament kinking or jamming. They are commonly used by bulk buyers in direct drive 3D printing setups.

• GEK Extruder

  The GEK extruder is based on the design of the Gravity Egg Kit but improved for better performance. It is primarily used in DIY 3D printers and is renowned for its easy customizability and adjustment. The GEK extruder is suitable for beginners and makers who want to experiment with various materials such as filaments or plastic pellets. Its versatility makes it a popular option among 3D printing businesses because it allows users to explore different printing methods.

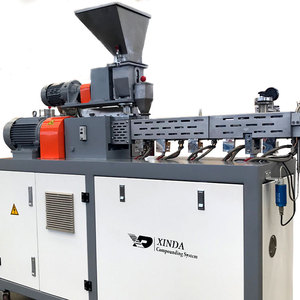

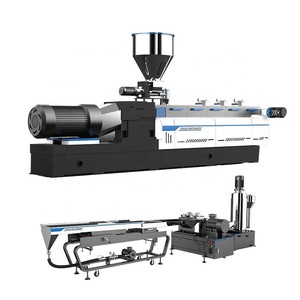

• Dual-screw Extruder

  Dual-screw extruders consist of two intermeshing screws. They enable efficient material conveyance, mixing, and melting. Their operability with viscous materials makes them a staple for producing filament with high-quality consistency. These extruders are mostly used by business owners who operate large-scale filament production.

Industrial applications of DIY plastic extruders

These applications help expand the reach of plastic extruders in bulk buyers' niches.

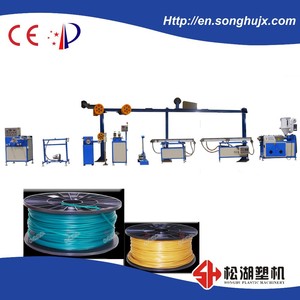

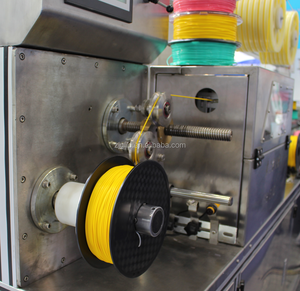

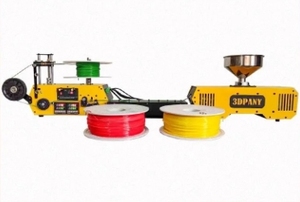

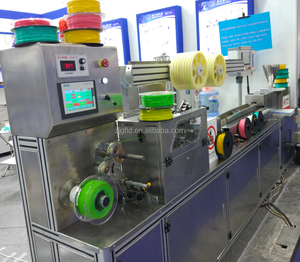

• Filament Production for 3D Printing

  DIY plastic extruders are mostly used to produce 3D printing filament from pellets or other plastic forms. This is particularly helpful to those who run niche filament brands, as they can control the filament diameter, material type, and color. With a DIY extruder, users can experiment with various material blends.

• Custom Filament Creation

  DIY plastic extruders give users the ability to create custom filaments for specific 3D printing projects. By blending or adding different materials to the mix, users can develop specialized filaments with unique properties to suit particular applications. For instance, adding carbon fiber to the filament mix helps produce a material that has greater tensile strength. This is useful for 3D printing functional parts in the aerospace sector.

• Rapid Prototyping

  Since the extruders provide the ability to produce filament on demand, they are useful in rapid prototyping. Users can quickly create the materials they need for prototyped parts, reducing the lead time associated with sourcing commercial filaments. This flexibility allows prototypes in product development to be more easily adapted and modified as needed.

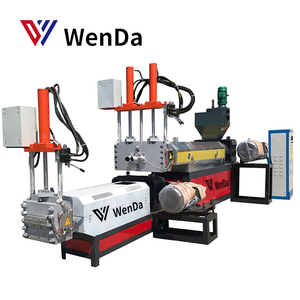

• Plastic Waste Recycling

  Plastic waste can be recycled into usable filament with DIY plastic extruders. This helps reduce environmental impact while providing a cost-effective material solution to users. This practice is popular with recyclers and ecologically conscious manufacturers who wish to convert waste into valuable resources.

• Material Research and Testing

  DIY plastic extruders enable material scientists and researchers to easily experiment with new material compositions. The flexibility of changing the extrusion parameters allows precise control over the material properties being tested. This makes the extruder a staple tool in research labs focused on developing new polymer blends or composite materials.

• Small-Batch Production

  Small businesses requiring specific plastic products can address their needs by using DIY plastic extruders. They provide a low-cost and simple method for producing small quantities of custom parts or products without the investment of large industrial machinery. This is particularly useful to businesses in the maker spaces and DIY market that need quick turnaround times.

• Education and Experimentation

  DIY plastic extruders are commonly used in educational settings to teach students the fundamentals of extrusion and material science. Hands-on experience with the equipment helps students understand plastic manufacturing. It also fosters innovation and creativity, which may lead to new product designs or applications.

Product specifications and features of DIY plastic extruders

Knowing their specifications and features helps business owners offer suitable plastic extrusion machines for sale.

• Key Features

  These are some of the key features of DIY plastic extruders:

  • Extrusion Mechanism: Most plastic extruders use either a screw or auger to transport and melt the plastic material. This is followed by a nozzle that shapes the extruded material to the required filament diameter.
  • Temperature Control: DIY plastic extruders have heating elements that help users set the required temperature for different plastic materials. There are thermocouples or temperature sensors that provide accurate temperature readings for better material compatibility. This prevents material degradation during the extrusion process.
  • Nozzle: The nozzles come with interchangeable sizes to enable users to control the filament diameter during 3D printing. Other features like anti-clogging designs aid in maintaining consistent filament flow.
  • Motor: The extruders have high-torque motors that ensure even filament production. Many models also offer variable speed settings for precise control over the extrusion rate.
  • Hopper: The hoppers provide room for loading plastic pellets or other materials. Some models come with larger hoppers for extended operation without frequent refilling.
  • Cooling System: Many kits include fans or cooling blocks that solidify the extruded filament quickly. This helps maintain the filament shape and improves the quality by preventing warping.
  • Compatibility: Most DIY plastic extruders are compatible with several plastic materials. They include ABS, PLA, PETG, and TPU. This allows users to manufacture a diverse range of filaments for various 3D printing projects.

• How to Install

  Setting up DIY plastic extruders is easy for bulk buyers, especially those with the following 3D printer models:

  • Mount the extruder to the 3D printer frame. Use adjustable mounts for easy position changes.
  • Connect the motor to the drive gear to ensure smooth filament movement.
  • Install the nozzle. Refer to the manufacturer’s manual for the proper way to mount it.
  • Use thermocouples to mount the heater cartridge and cooling fan for precise temperature control. Tailor the heat to each filament.
  • Attach the filament to the drive gear. Ensure it’s secure for smooth 3D printing.
  • Calibrate extrusion by measuring the filament and comparing it to settings.

• How to use

  Enjoy these benefits when using DIY plastic filament extruders:

  • Material Customization: Users can experiment with different plastics and blends to create unique filaments. This allows for the production of specialized materials tailored to particular needs or projects, giving users more control over material properties.
  • Cost Efficiency: By producing their own filament, users can save long-term costs, especially when large quantities are needed. Buying plastic pellets is often cheaper than purchasing pre-made filament, and the cost of materials is further reduced through recycling.
  • Quality Control: DIY extruders enable users to oversee the filament production process. This allows for better quality control in material consistency, diameter, and color.
  • Waste Reduction: Users can turn plastic waste into usable filament, reducing environmental impact and making use of discarded materials. This practice benefits users who are eco-conscious and want to reduce their carbon footprint.
  • Experimentation with Additives: The extruders allow for the incorporation of various additives, such as colorants, reinforcements, or specialty materials. This is essential for creating custom filaments with enhanced properties for specialized applications, such as increased strength or improved flexibility.

• Maintenance and repair

  These tips can help users maintain their plastic string extruder kits:

  • Users are advised to regularly clean the nozzle to prevent filament clogs. They should use a nozzle cleaning needle or perform a cold pull with purging filament to remove any residue.
  • The hopper should be regularly inspected for any material buildup or residue. A clean hopper ensures a steady supply of materials without contamination. Users should also ensure they are using the right type of filament for the extrusion temperature to prevent degradation.
  • Users should also regularly check and tighten all electrical connections to prevent intermittent faults. It is also important to grease the screw occasionally to ensure effective burr grinding.
  • Ask OEMs for replacement parts whenever the extruder's components become damaged or show signs of excessive wear, such as replacing the drive gear, motor or auger. Upgrades save the equipment from glitches and enable it to function optimally.

Quality and safety considerations for DIY plastic extruders

Applying these tips can help business owners avoid quality-related issues when selling 3D printer plastic extruders.

• Filament Quality

  The quality of the extruder materials used directly impacts the filament produced. Use materials with high purity and no additives for optimal results. Low-quality plastics can clog the nozzle, leading to poor filament extrusion. Users should also avoid using materials with high moisture content. The moisture will cause bubbles during the melting process, resulting in poor-quality filament. Furthermore, using a filament dryer will ensure the materials are dry and ready for optimal-quality filament production.

• Heat Control

  Since DIY plastic extruders are used for material mixing, improper temperature control can cause material degradation or uneven mixing. To prevent this, ensure the temperature is properly calibrated for each material type. It will also be effective to use a temperature control device for better precision. Users should also regularly check the heating element to ensure it is functioning properly and replace it when necessary.

• Nozzle Maintenance

  The nozzles are essential components in filament production, and they require frequent maintenance to ensure optimal results. Regularly cleaning the nozzles with a dedicated cleaning filament or a soft brush prevents buildup that can affect filament diameter and quality. It is also necessary to use the right-sized nozzles for the material being used, as improper nozzles can hinder filament flow and lead to mixing issues.

• Safety Precautions

  Safety is paramount when working with plastic materials and extruders. Users should wear heat-resistant gloves when handling molten plastic to prevent burns. Before starting the mixing process, ensure the workspace is well-ventilated, especially when using materials that emit toxic fumes when heated. Materials such as ABS and PETG release harmful particles that can cause respiratory irritation. The workspace must be ventilated when using them. Users should also ensure their equipment, especially electrical parts and heaters, are properly grounded to prevent equipment-related hazards.

• Electrical Safety

  Electrical components can pose risks of shock or short-circuiting. Users should regularly inspect wires, plugs, and connections for damage. Working with a damaged electrical part can cause shocks or even electrocution. Encourage users to use surge protectors when operating electrical devices outdoors and avoid overloading circuits.

• Material Handling

  Plastic materials, in their raw state, can pose health hazards if not handled properly. They can cause skin irritation or, when inhaled, respiratory problems. It is recommended that users store plastic pellets and filaments away from children and pets and keep them in clearly labeled containers.

Q&A

Q1. Which materials can DIY plastic extruders handle?

Most DIY plastic extruders are suitable for serving materials such as ABS, PLA, PETG, VHS, nylon, and TPU. PLA is popular for beginners because it is easy to use and environmentally friendly. Users also prefer ABS for its strength and heat resistance. PETG blends the best of both properties by improving toughness and chemical resistance. 3D printing manufacturers normally use HIPS to produce supports. Others prefer nylon for functional parts due to its durability and flexibility. HSD filaments are special materials reinforced with tiny glass fibers to enhance the strength of 3D prints. TPU is a type of filament that is flexible and elastic and is used to create prints that require bending. Because DIY plastic extruders produce filaments, they can help extend the range of materials users can experiment with for various 3D printing projects.

Q2. What is the role of the cooling fan in DIY plastic extruders?

The cooling fan helps solidify the extruded filament quickly after coming out of the nozzle. Solidifying quickly maintains the filament shape and prevents warping or deformation. Proper cooling ensures that the filament retains a consistent diameter, improving the quality and usability of the filament for 3D printing.

Q3. How can users prevent clogging in the nozzle?

Using high-quality filament and maintaining proper temperature will prevent most clogs. Users can also avoid using materials with high moisture content since they will cause bubbles during the melting process. Cleaning the nozzle regularly also helps maintain optimal nozzle performance.

Q4. Can DIY plastic extruders be used for recycling plastics?

Yes, DIY plastic extruders can turn plastic waste into usable filament. They make it possible for users to recycle old prints, packaging materials, or single-use plastic items. Recycling plastic waste reduces environmental impact and provides a low-cost material solution for 3D printing projects.

Q5. What safety precautions should users take when working with plastic materials and extruders?

Users should wear heat-resistant gloves when handling molten plastic to prevent burns. They should also ensure the workspace is well-ventilated, especially when using materials that emit toxic fumes, such as ABS. Manufacturers should address this concern by integrating fume extraction systems into the extruders. Furthermore, users should store plastic pellets and materials in clearly labeled containers away from children and pets.
