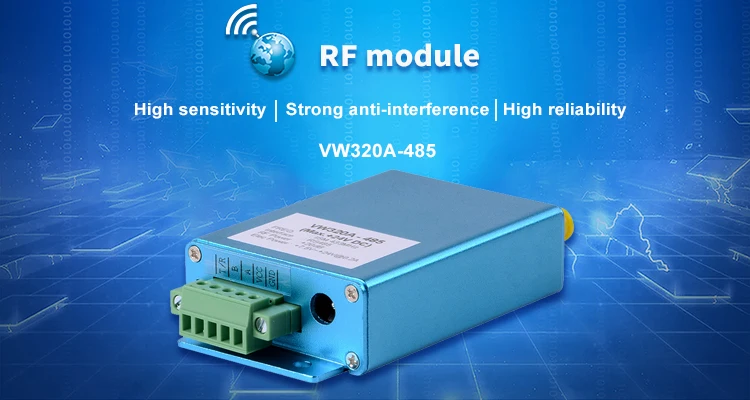

VW320A 24 V 100 mW rs485 rf 433 mhz 长距离射频收发器模块

FOB 参考价格获取最新价格
$22.00 - $36.00 / Piece | 2 Piece/Pieces (最小起订量)
供应类型:
Original manufacturer Odm
交期:
数量(Pieces) 1 - 2 >2
美国东部时间(天) 3 可协商
定制:
LOGO定制 (Min. Order: 1000 Pieces)
外包装定制 (Min. Order: 1000 Pieces)
Samples:
$36.00 /Piece | 1 Piece (最小起订量) | Buy Samples
报告可疑活动
概览
简介
应用:
无线数据通信
原产地:
Guangdong, China
型号:
VW320A
品牌:
Vitalwell
射频芯片:
Silabs Si4463
通道号:
100 通道
频率范围:
433/868 MHz
接口:
RS485
调制:
2-FSK
电源电压:
工作电源电压 = + 7.5V ~ + 24 V
操作温度:
-℃ 〜 ℃
RF 数据速率:
1200bps 〜 128 kbps 的
射频发射。电源:
100 mW (+ 20dB) (最大)
接口的足迹:
接线端子
供应能力
供应能力:
10000 Piece/Pieces per Month
包装与物流
Port
Shenzhen / HK
交期 :
数量(Pieces) 1 - 2 >2
美国东部时间(天) 3 待协商
Product Description

The VW320A series wireless module provide the capability of a short range, reliable wireless point-to-point, point-to-multipoint and mesh network RF data communications link.They can be used in a variety of data communications applications that require a simple to use invisible data link.

The wireless modules are designed to operate in the unlicensed ISM frequency band (433MHz/868MHz/915MHz ISM band) and are therefore acceptable for use in many countries.

Product Features:

(1) 4 Operation modes: Transparent mode,Transparent secured mode,Addressed mode and Addressed secured

      mode.
(2) Repeater supported.
(3) Integrated wireless link protocols .
(4) Deep sleep mode supported.
(5) Server-Client mode.
(6) Easy configuration by AT commands.
(7) Easy configuration with a user friendly control panel on PC.
(8) Boot Loader supported.

Major Parameters:

Radio Chip:
Silabs Si4463
Frequency band:
433/868MHz
Interface:
RS232/232TTL/RS485/USB
Modulation:
2-FSK
Max.Tx.power.:
100mW (+20dB) (Max.)

Supply Voltage:
USB: +5V
RS232: +5V / +24V
232TTL: +3.3V / +5V
RS485: +7.5V~ +24V
RF date rate:
1200bps ~ 128kbps
Channel numbers:
100
Linkage range:
1km, outdoor, L.O.S (@ RF rate 9600bps)
Operate temperature:
-30℃~80℃

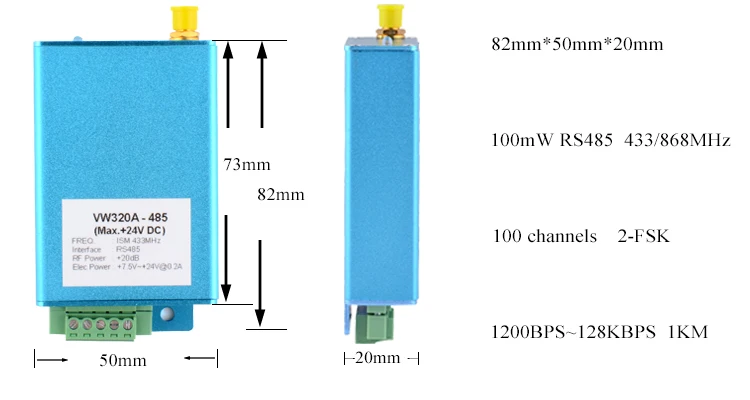

Size:
RS485/RS232: 82mm X 50mm X 20mm (with casing including flange)
USB: 81mm X 84mm X 24mm (with casing including flange)
232TTL: 41mm X 23mm X 5mm


Interface footprint:
RS485/RS232:Terminal Block
USB:USB
232TTL:2.0mm SMT solder pad or pin header
Antenna impedance:
50Ω
Detail & Accessories

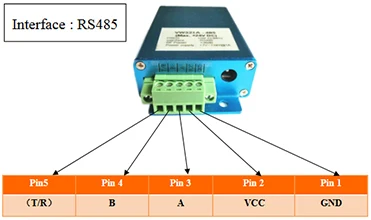

RS485 Interface

Transparent mode
Transparent secured mode
Addressed mode
Addressed secured mode.




Name: Magnetic Antenna

Frequency: 433MHz
Connector: SMA-Male
Length: Antenna length 155mm
(Cable length can be customized)





Name: Swivel Antenna

Frequency: 433MHz
Connector: SMA-Male
Length: 108mm (87mm after swiveled)

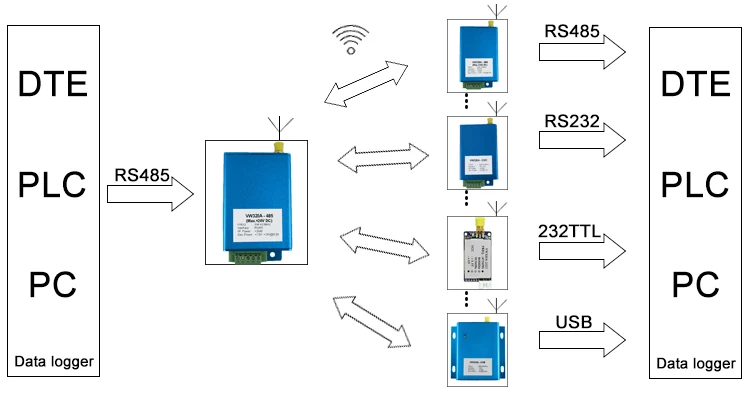

Function Description


☀ Providing the capability of a short range, reliable wireless point-to-point, point-to-multipoint and mesh network

    RF data communications link.
☀ Being used in a variety of data communications applications that require a simple to use invisible data link, and

    is designed to interface to a variety of host devices.

☀ Providing a two-way data communications links. The serial data transferred over the radio link is not altered.


Major Applications

(1) Wireless 232 or 485/422 data link .
(2) Water,electricity,gas and other automatic meter reading (AMR)system;
(3) Building automation system; Security entry system;
(4) Intelligent traffic; Vehicle Control;
(5) Wireless scanner;
(6) Restaurant Order System Management;
(7) Industrial control,remote sensing,automatic data collection system;
(8) Wireless data transmission; Digital audio,digital image transmission;
(9) Wireless electronic display screen;
(10) Telemetric systems;
(11) Oil Well Measuring,Environmental Protection Monitoring.
(12) Hydrology Water Level Monitoring; etc.

                       ▪ Industrial Manufacturing

            Replacing industrial field short-distance
            signal cable, Reducing wiring, Easy to
            manage and improve production efficiency.

                  ▪ Automatic Water Meter Reading

        AMR saves utility providers the expense of periodic
        trips to each physical location to read a meter.
        Helping to reduce user complaints and improve
        service quality.

                                ▪ Smart Farm

            Accurately monitor the details of each
            work area for easy statistics Management,
            first discovered potential risks.

             ▪ Hydrotlogy Water Level Monitoring

       Remote monitoring hydrology water level in many
       environments including wells, dams, streams, weirs,
       storm water systems, and water treatment or
       wastewater treatment plants and etc. Get instant
       alerts and know exactly what's happening at any
       moment.
