鸿阳 1500 瓦光纤激光铁片切割机 WSX 激光切头 3000x 1500毫米切割面积

  • 1 - 1 Sets
    $37,050.00
  • >=2 Sets
    $35,800.00
型号:
HYJG-3015
功率(瓦):
1500 W
运输:
支持 海运运费
交期:
数量(Sets) 1 - 1 2 - 10 >10
美国东部时间(天) 15 20 可协商
报告可疑活动
概览
简介
激光类型:
光纤激光器
切割面积:
3000 点 ¯ x 1500毫米厘米
切割速度:
月米/分钟
原产地:
Anhui, China
品牌:
红阳激光
控制软件:
CypCut
切割厚度:
16 毫米碳钢) 6毫米 (不锈钢)
工业激光器品牌:
IPG RAYCUS
直线导轨品牌:
HIWIN PMI
光学镜片品牌:
WSX
功能:
切割金属材料
切割材料:
不锈钢碳钢板材
型:
水冷却纤维激光切割机
颜色:
可定制

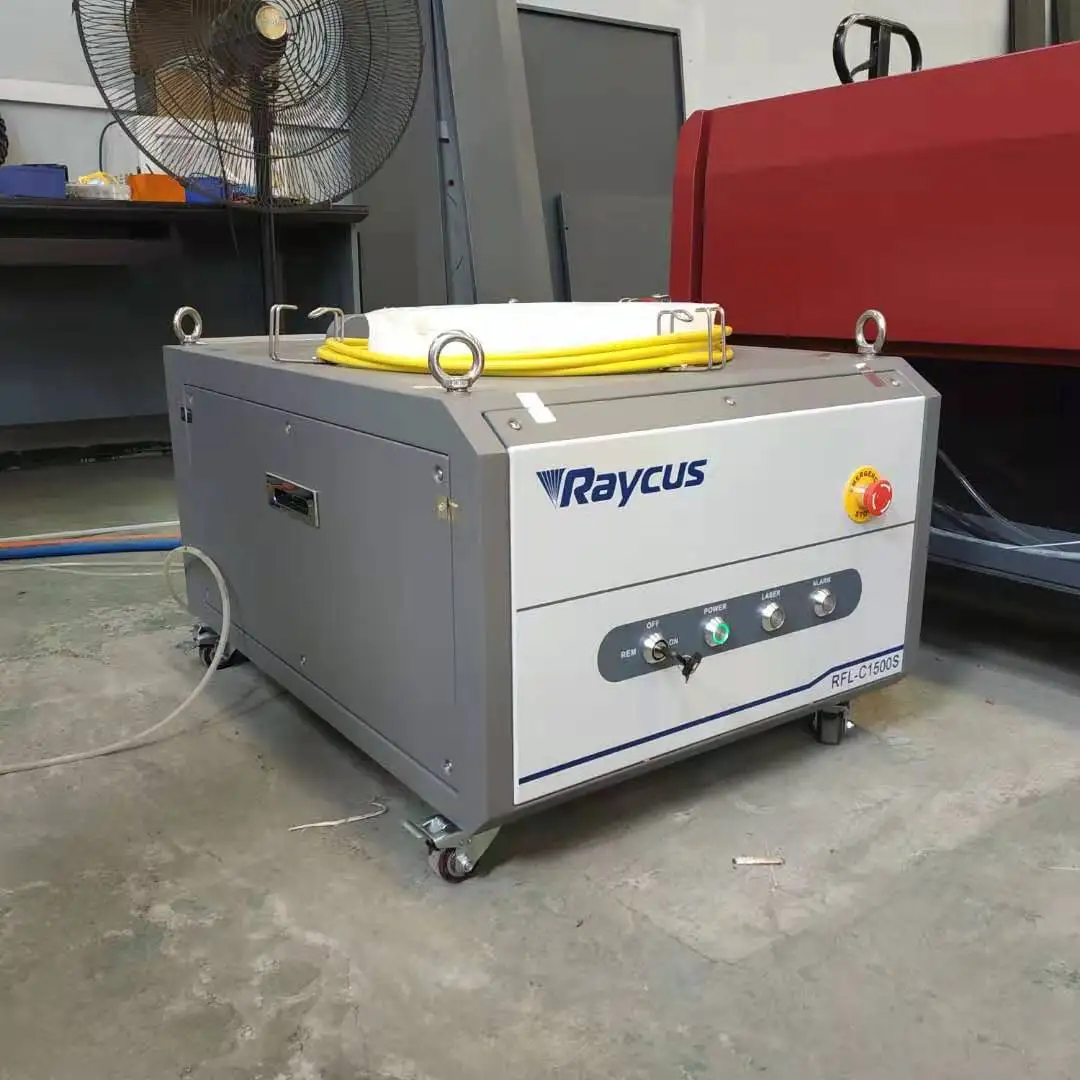

激光光源:
IPG Raycus
传输:
台湾 YYC 齿轮
电源:
380 V/50 HZ
项目:
流行的激光切割机
定位精度:
0.5毫米
减速机:
日本 Shimpo
供应能力
供应能力:
20 Set/Sets per Month
包装与物流
Packaging Details
1.防撞包边缘
2.全薄膜包装机
3.标准出口木箱或铁架内填充海绵,用于包装保护
Port
Shanghai
交期 :
数量(Sets) 1 - 1 2 - 10 >10
美国东部时间(天) 15 20 待协商
Product Description

Product Application

1Hongyang 1500W CNC optical fiber laser cutting machine have large cutting area 3000mm*1500mm,it allow long metal steel sheet cut in the machine table.

2.Fiber laser cutting machine is a laser cutting machine that uses fiber laser generator as light source.
3. it can cut and punch different kinds of metal material with high precision and high speed.
4.It is widely used for middle and thin metal plate.Cutting carbon steel, stainless steel, aluminum ,galvanized sheet,electrolytic plate and other metal materials with high quality, high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

item
specification

Effictive stroke
X axis
3010mm
Y axis
1510mm
Z axis
120mm

Position accuracy
X/Y axis(mm/m)
±0.05mm
X/Y axis repeat(mm/m)
±0.025mm
Z axis(mm/m)
±0.025mm
X/Y axis max position speed(m/min)
80m/min
Acceleration(G)
1.2G
Electrical voltage rating(v)
380V
Protection level
IP54

Main Features

1)1500W CNC fiber laser cutting machine can cut 1-16mm carbon steel sheet 0.5-6mm stainless steel sheet

2) Advanced spares: The laser lens is adopting advanced world famous brand ,smaller focusing spot,cutting streak is more specific,high work efficiency,better processing quality.
3) Easy operation:Professional CNC control system of fiber laser cutting machine,operate it on the computer, convenient,flexible and easy.
4) Low cost: The whole power consumption is only 30% of traditional laser cutting machine.
5) High cutting speed:2 times faster than CO2 laser,4-5times faster than YAG laser.

Detailed Images

Main Features

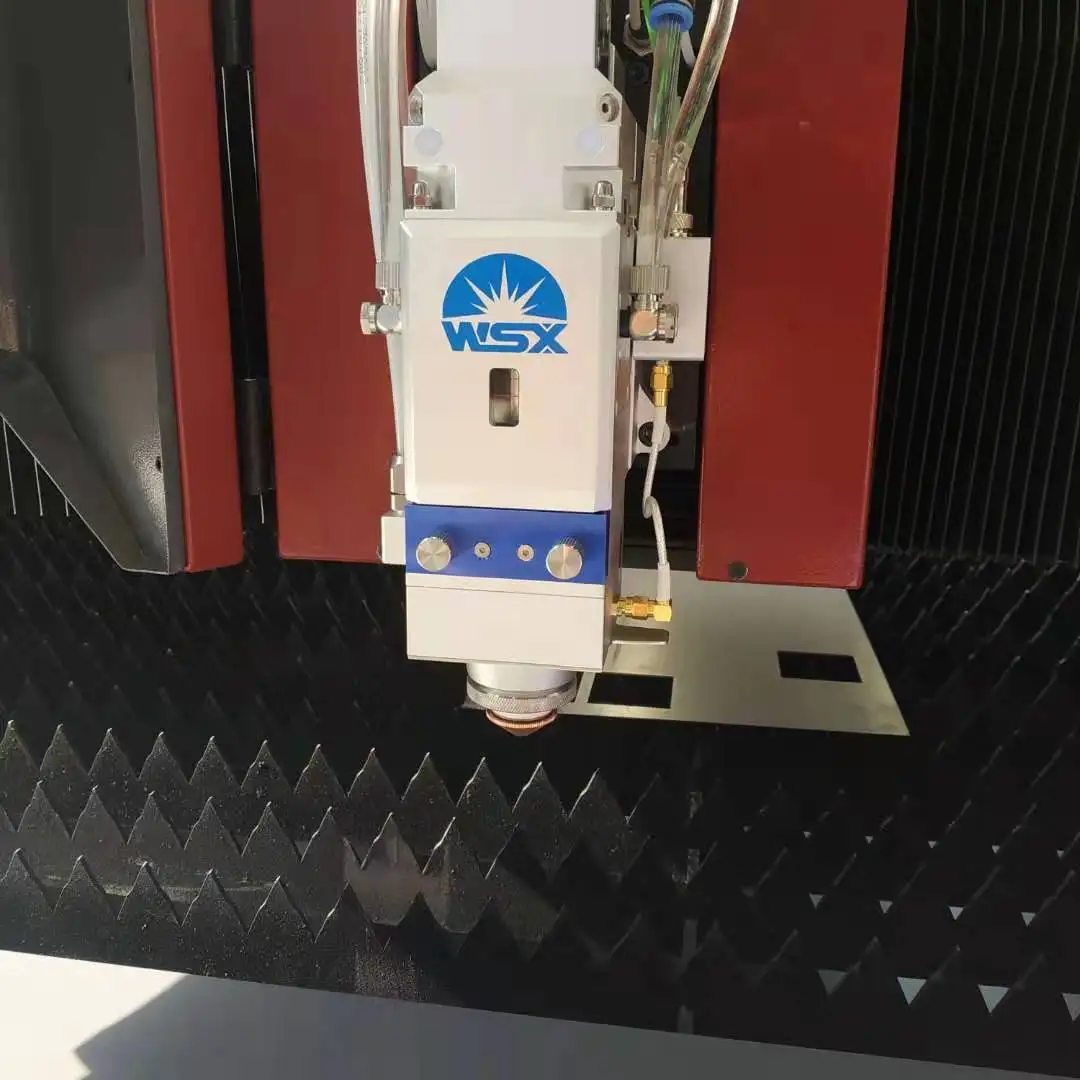

Name: Laser head
Brand: WSX
Original: Shenzhen China(mainland)
Domestic famous brand, Its perforation speed is several times of traditional cutting head.It can autormatic focusing,good sealed,high pressure resistant,smaller focusing spot,cutting streak is more specific,high work efficiency,better processing quality

Machine Parts

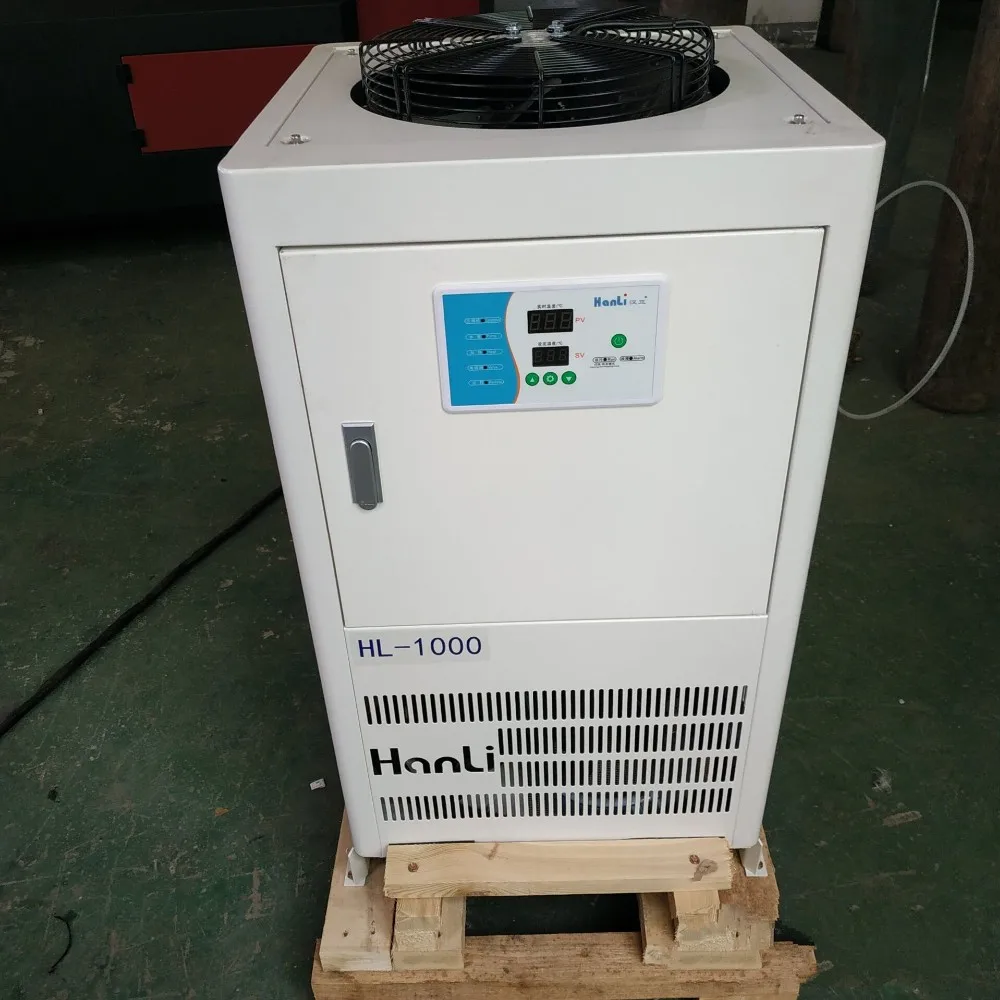

Name: Cooling system
Brand: Hanli
Original: Wuhan China(mainland)
When laser head cut matels,there will produce some hot energy in laser head and laser source, It is to cool this two parts.

Main Features

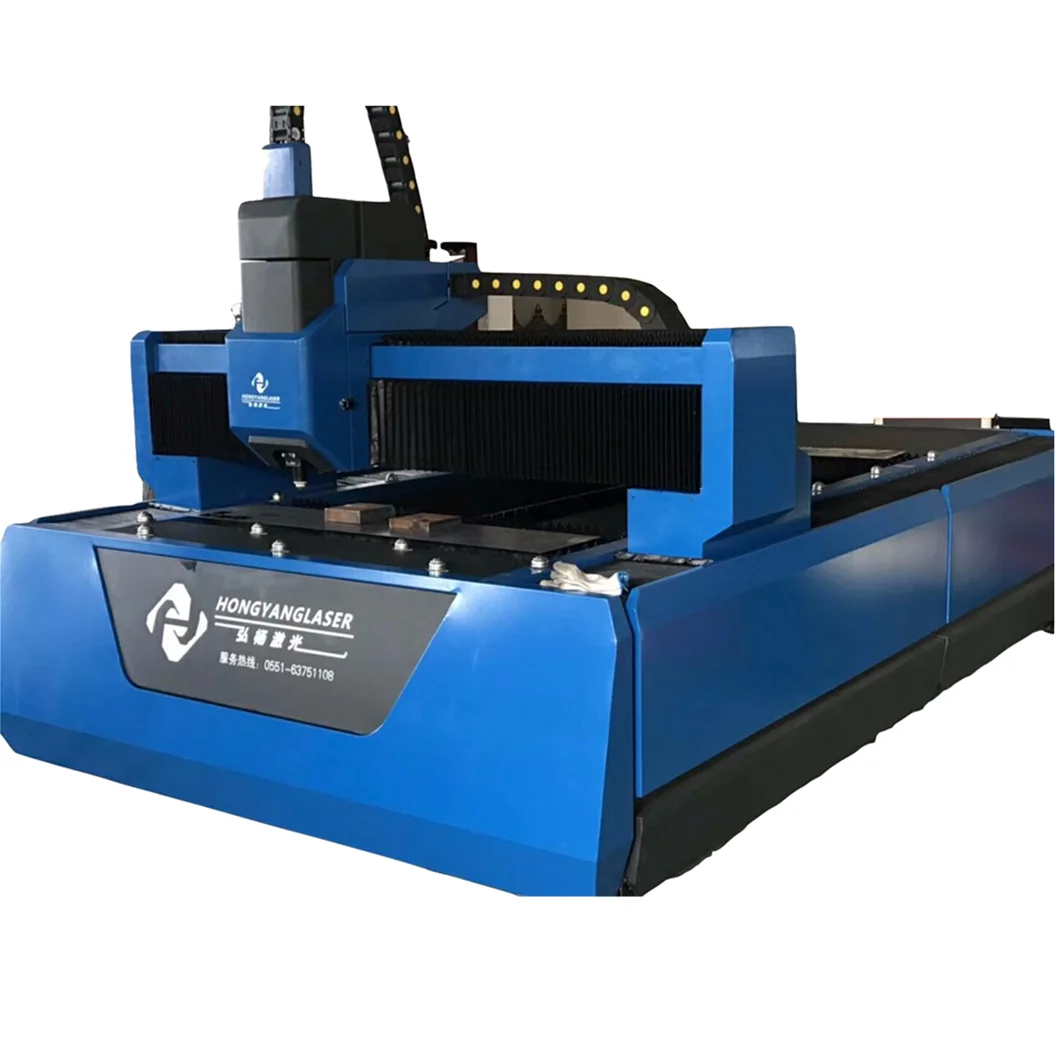

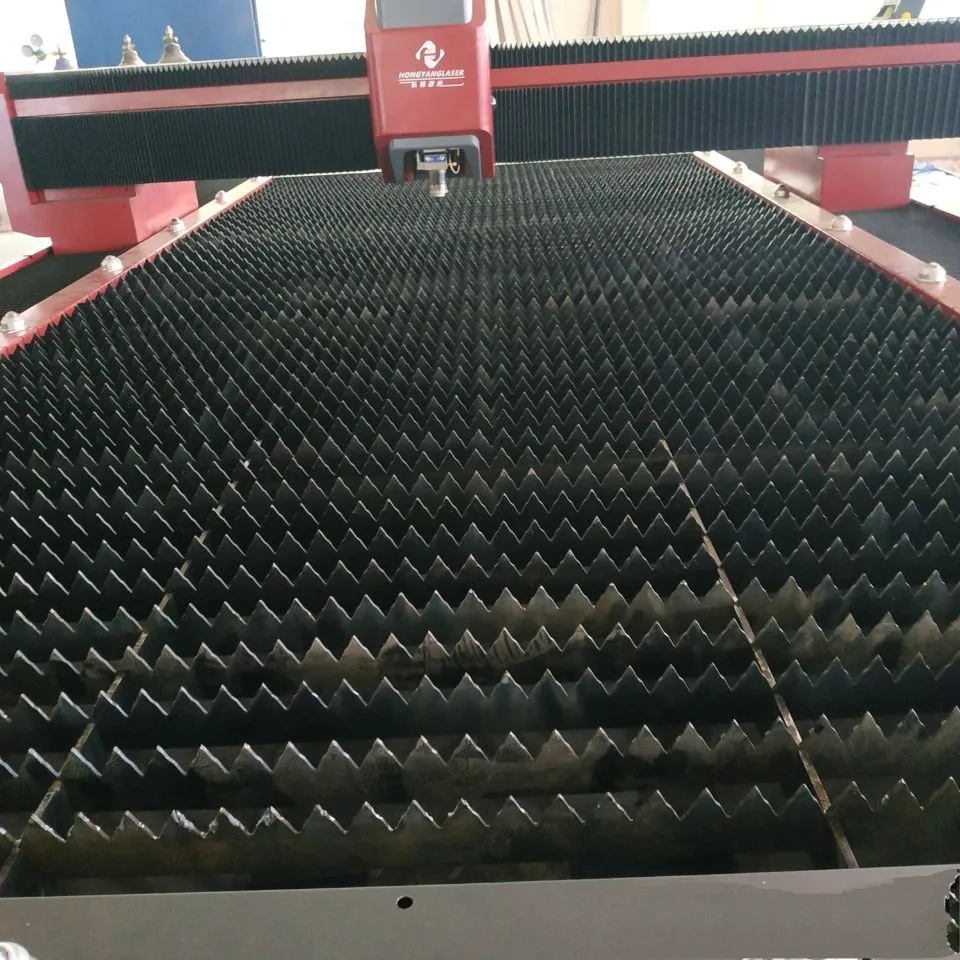

Name: Machine tool
Brand: Hongyang
Original: Anhui China(mainland)
machine bed made of cast iron.Saw tooth blade table, suitable for sheet metal cutting.The mathine tool is independently researched and developed by our complany,

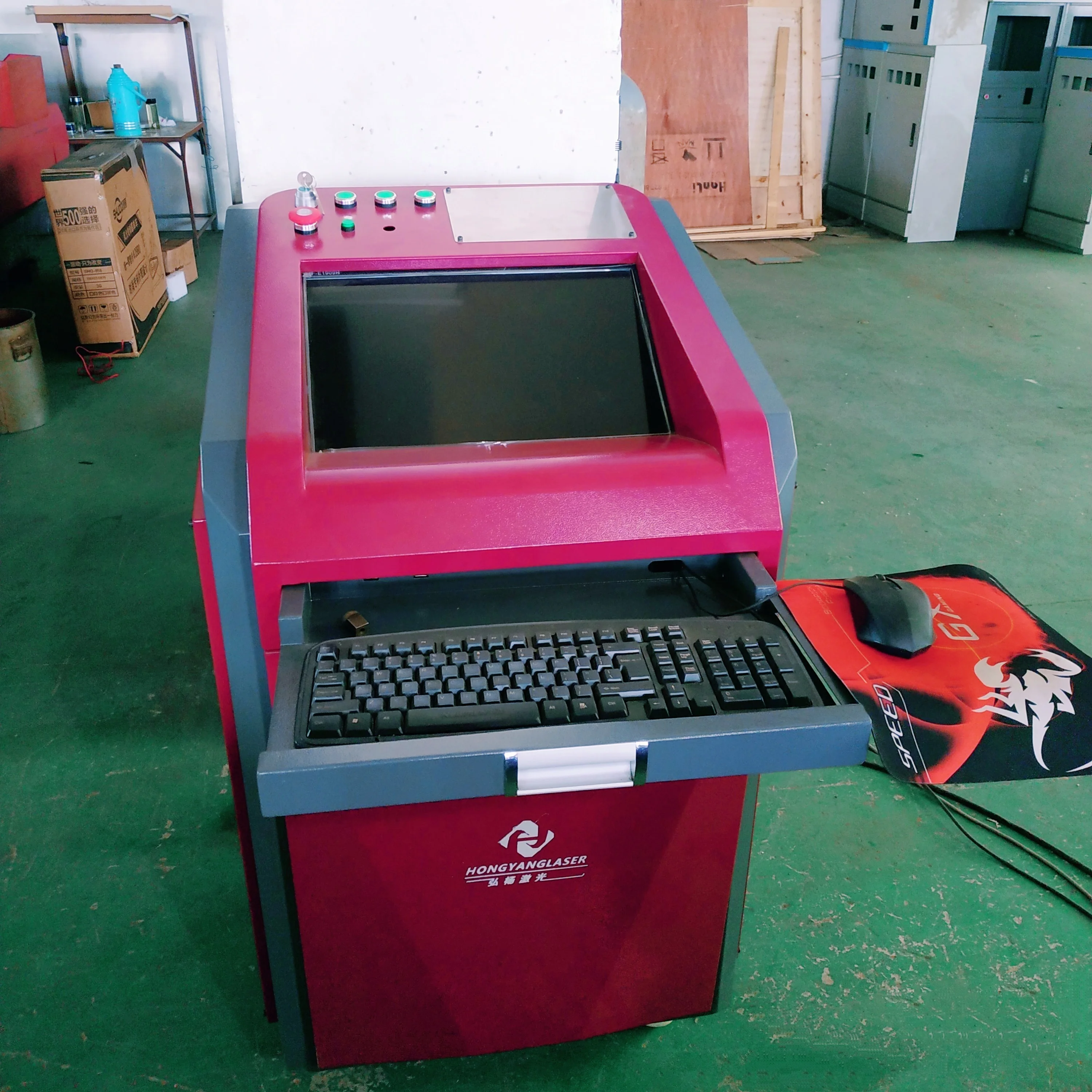

console
The software developed by Shanghai Friendess Company is of first-class quality and precise positioning, which can make cutting faster and enable manufacturers to maximize production capacity in a short time.and the software is Cypcut,best software in China.

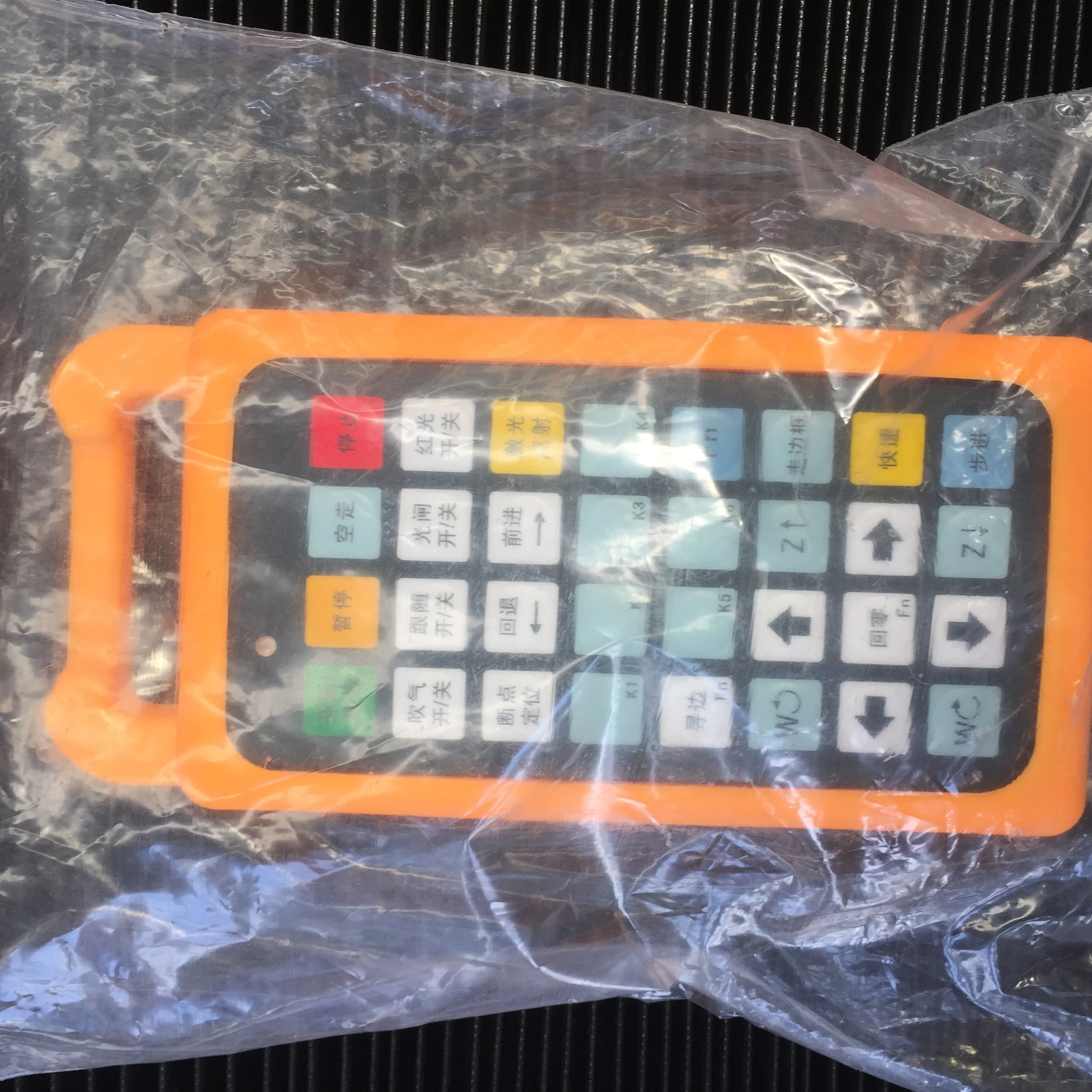

The wireless remote controller can make the worker cut the steel plate freely, and can move to any position near the machine to control the cutting head. It can achieve the purpose of convenience and speed.

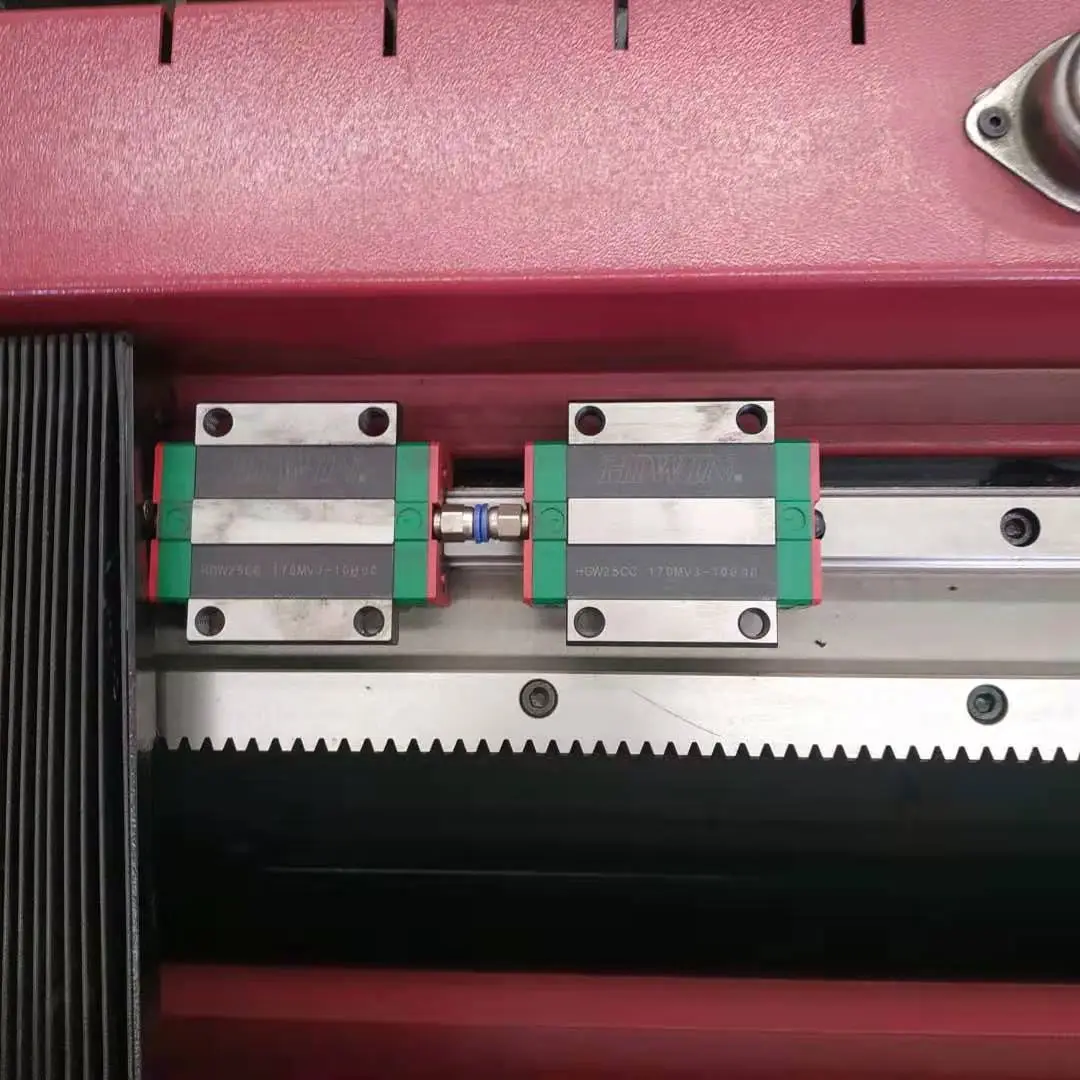

Taiwan HIWIN guide
it make laser cutting head can remove in high precision and high accuracy.this kind of guide is best brand in China.and it can let worker control the head in what he want.

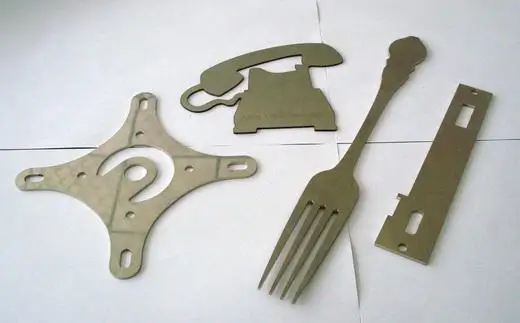

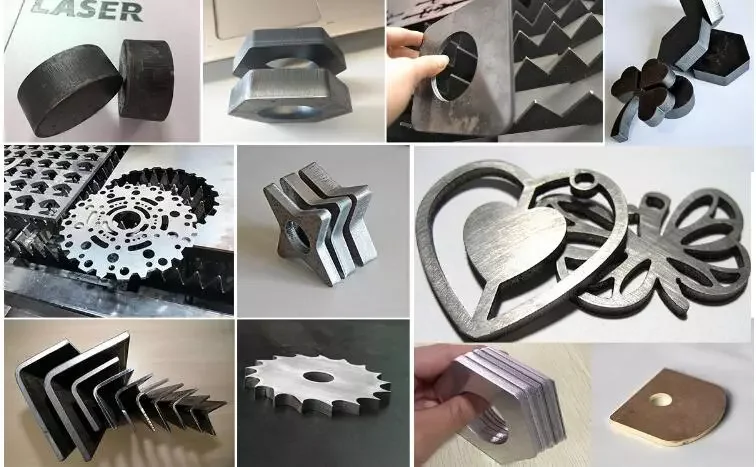

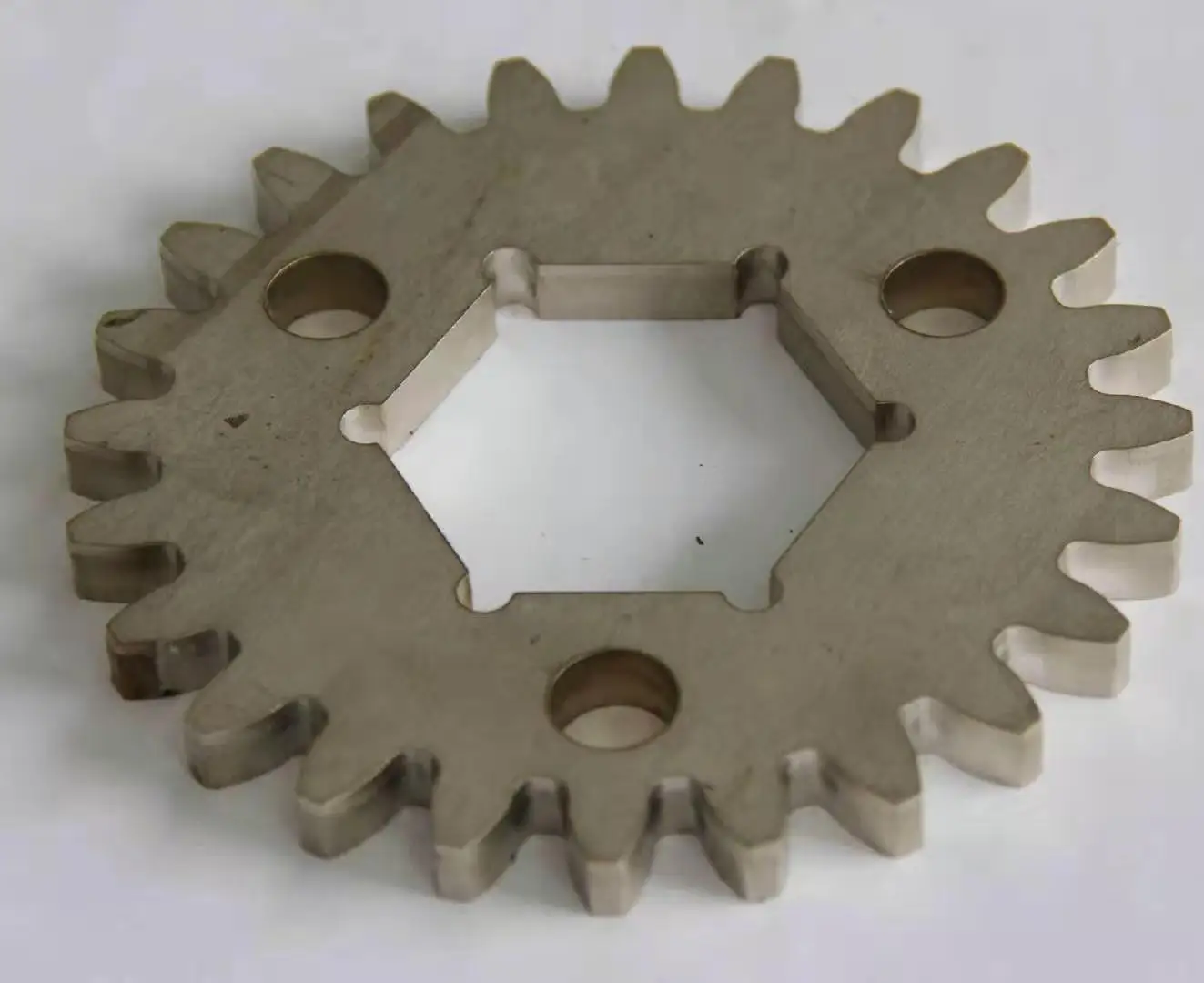

cutting samples
Our Company

     Anhui Hongyang laser tech co., LTD.

High and new tech enterprise: Anhui Hongyang laser tech co., LTD. Is China's famous laser cutting machine manufacturers, technology R&D on cutting machine, sheet metal processing technology mature, perfect facilities, research and design of professional engineers registered, established in 2011, nine years of experience in R&D production, in 2019 won the award for the national high and new tech enterprise, has extremely high capacity for independent research and development, but also the national key support the high growth of enterprises, has a good potential economic benefits.

Customer distribution across China: Anhui hong Yang laser technology co., LTD., has a huge customer base, distribution in jiangsu, anhui, hubei, yunnan, guangdong, etc., and long-term relations of cooperation, our company is its homegrown type company, without the agent price, so the price affordable, best quality, many customers.

Certifications

Business license represents

Anhui Hongyang laser technology co., ltd. was formally registered and established in 2011 in the market supervision administration of feixi county, hefei city, anhui province.

Certificate of organization code

Anhui Hongyang laser technology co., ltd. can legally operate and handle corresponding business in China with this certificate.

Tax registration certificate

 a certificate issued by tax authorities to taxpayers who have gone through tax registration.

cooperation
Packing & Delivery
Packaging



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

1,Can you customize the product according to different requirements?
Yes,Hongyang Laser is very dedicated to combine with our current ability with the our professional engineer to offer you the customized application
2,What is your nomal package?
We use plywood box
3,How many years of experience do you have in manufacturing machines?
9 years,and Hongyang laser is a professional manufacturer and can product fiber laser cutting machine,plate tube cutting machine,laser marking machine,and Mechanical parts such as pulsed xenon lamp,YAG crystol rods laser beauty lamp,our customers all over China
4,What is you core advantage when compare with other companies?
High-tech enterprises receive key state support;9 years experience of manufacture;customers distribution China.
