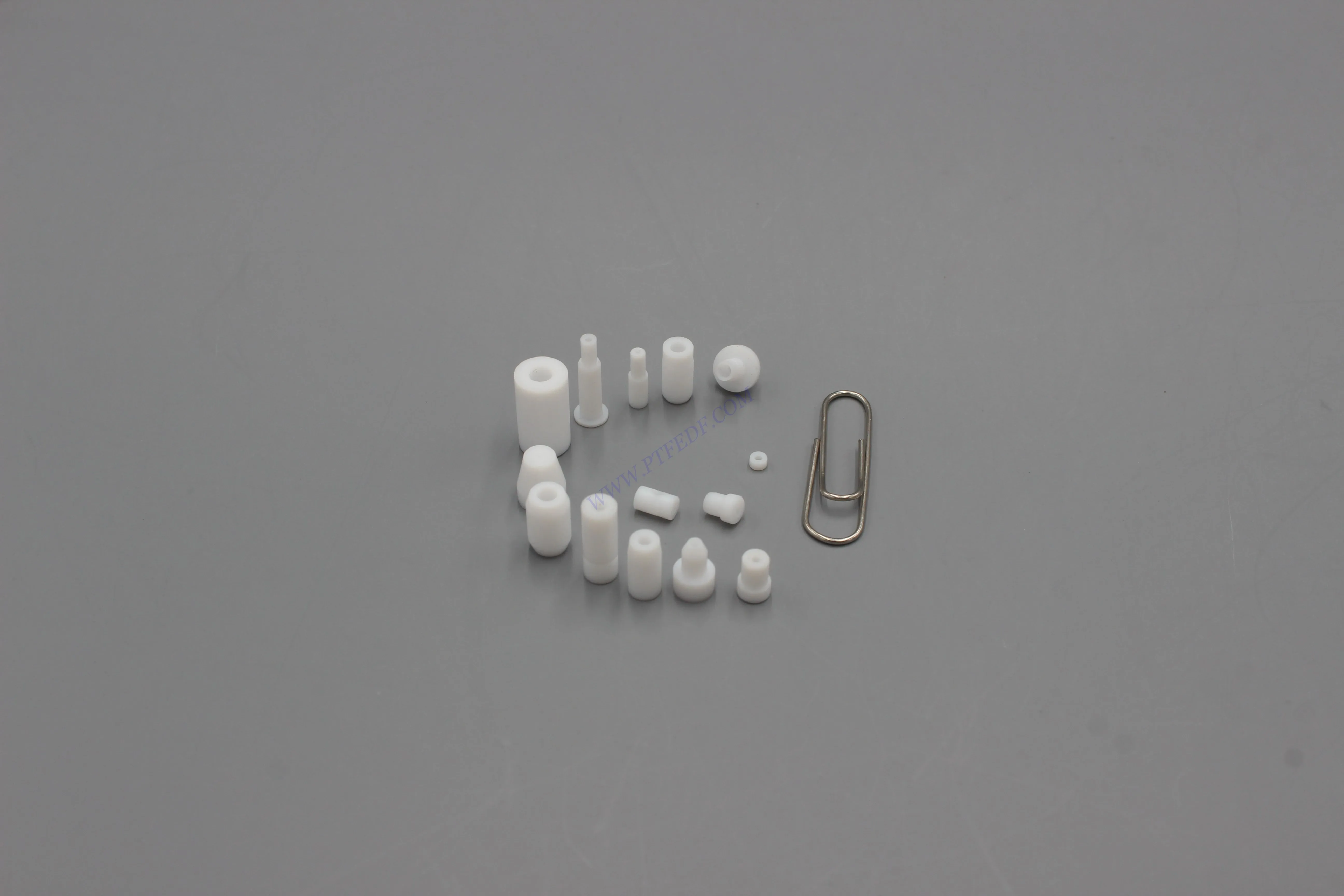

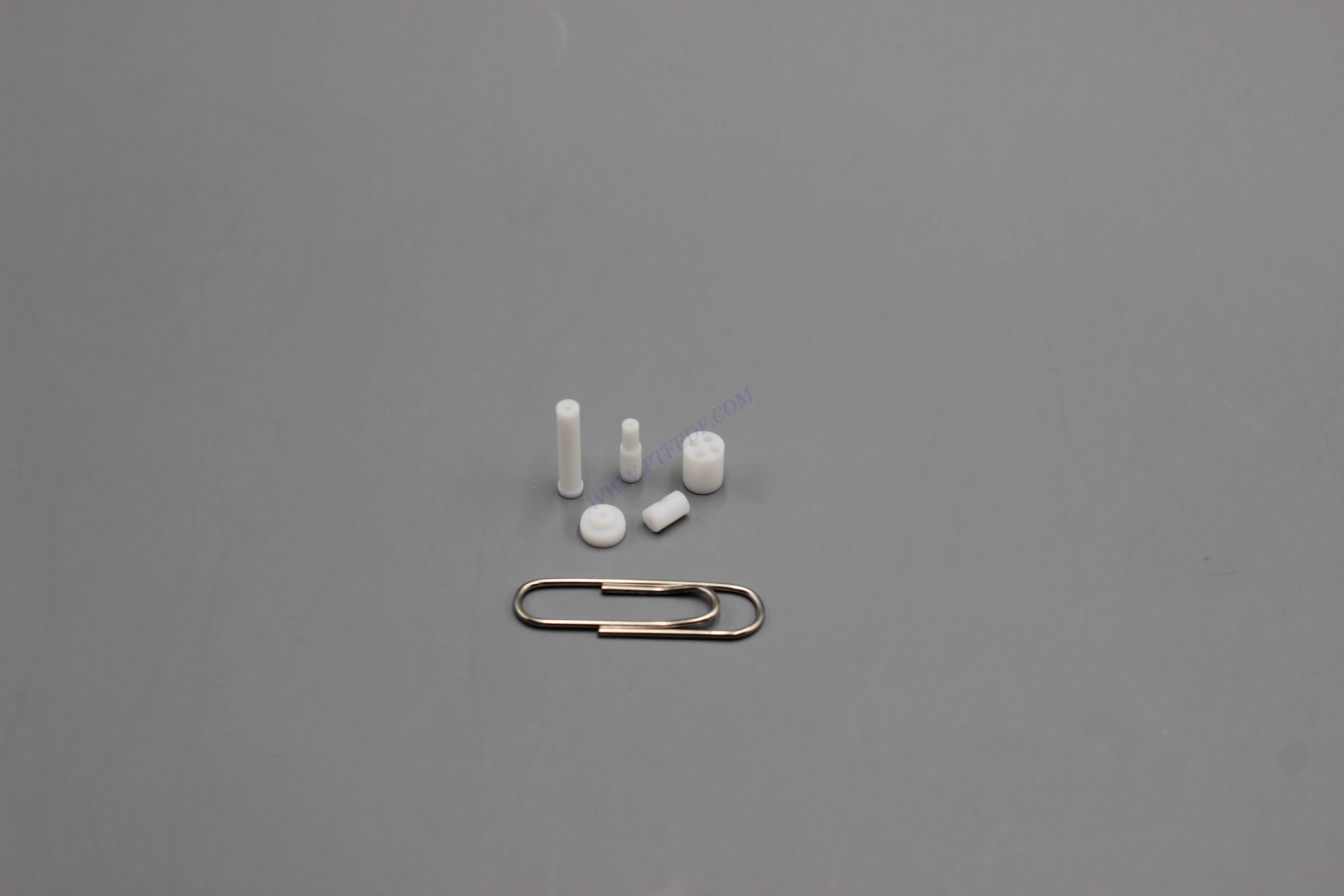

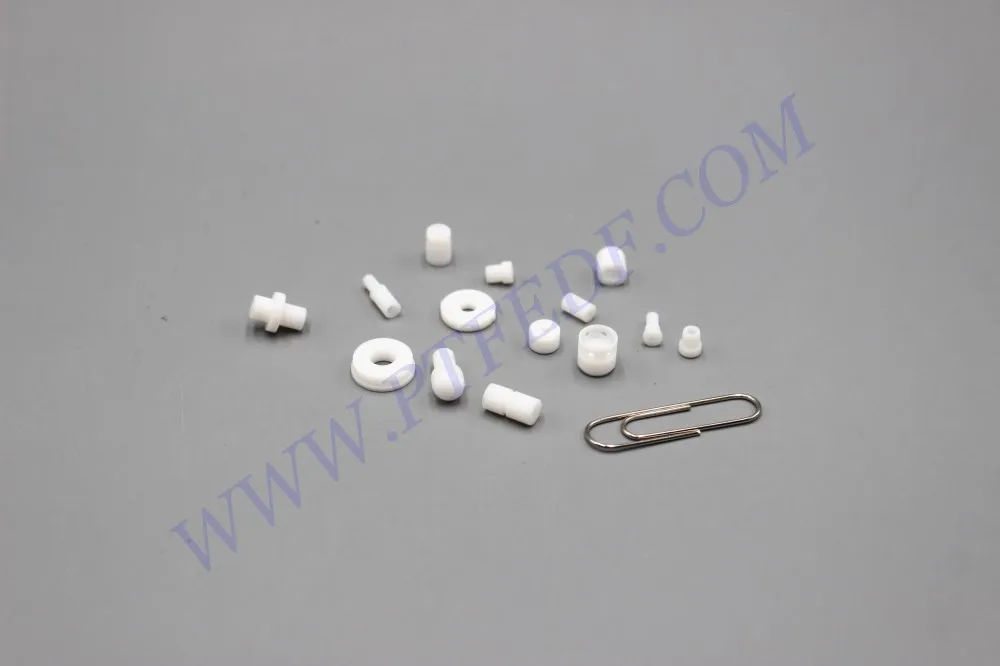

耐高温 PTFE 塑料聚四氟乙烯衬套

FOB 参考价格获取最新价格
$0.10 - $6.00 / Piece | 1000 Piece/Pieces (最小起订量)
交期:
数量(Pieces) 1 - 1000 >1000
美国东部时间(天) 7 可协商
定制:
size (Min. Order: 1000 Pieces)
shape (Min. Order: 1000 Pieces)
Samples:
$5.00 /Piece | 1 Piece (最小起订量) | Buy Samples
报告可疑活动
概览
简介
原产地:
Guangdong, China
品牌:
DF
型号:
聚四氟乙烯绝缘套管
材质:
100% 纯 PTFE
产品名称:
铁氟龙套管
证书:
SGS/ISO9001/FDA/RoHS/REACH
颜色:
白色/黄色/红色/蓝色/绿色/黑色
布什的类型:
产品特点:
不粘/电绝缘/无老化/耐温
工艺:
数控/模具压
标准:
非标准
大小:
定做
市场:
在世界各地
用法:
绝缘
供应能力
供应能力:
100000 Piece/Pieces per Month
包装与物流
Packaging Details
内部塑料袋与 EPE 或纸箱板,以保护货物免受压制。外面在纸箱或木箱里。
Port
Shenzhen & Hong Kong
交期 :
数量(Pieces) 1 - 1000 >1000
美国东部时间(天) 7 待协商
Product Description

Insulator-Insulating in high voltage and heat

Dechengwang boasts a full range of electrical insulation polymer products. It's possible to customize electrical insulators such as gaskets, seals, washers, straps and other shapes. Electrical insulation materials can meet your demands in a wide range of thicknesses, hardness, densities, and colors. PTFE is one of the highest performing thermally-formed and non-conductive plastics, which makes it the chosen material for insulators in circuit boards.


Materials we offer
Material Name
Compound %
Main Properties
Color
PTFE
/
Very low coefficient of friction and excellent chemical resistance.
FDA approved
White
Glass Filled PTFE
Up to 40%
Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance.
White cream
Carbon Filled PTFE
Up to 35%
Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties.
Black
Graphite Filled PTFE
Up to 25%
Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way.
Black
Bronze Filled PTFE
Up to 60%
Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance.
Dark Brown
Molybdenum disulphide(MoS2) Filled PTFE
Up to 5%
Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction.
Blue azure
PEEK filled PTFE
Up to 20%
Increased thermal resistance, sliding properties, surface hardness. Superior properties on dynamic applications.
Light Brown
PEEK
/
Light BrownExcellent mechanical properties including strength, rigidity, impact resistance, low wear rate and low coefficient of friction, retained over a wide range of service temperatures
Translucent
PEEK Compound
/
Improves technical and chemical properties like deformation under load, wear resistance, thermal expansion and electrical conductivity.
/
PVDF
/
Resistant to UV radiation and offers high mechanical strength and abrasion resistance.
Translucent
PCTFE
/
Better mechanical properties than other fluoropolymers, low permeability
Translucent
PFA
/
Excellent chemical and temperature resistance, electrical insulation and excellent processability
Natural
Packing & Delivery

Packing Details  : Inner plastic bags, packed in carton box.

Delivery Details : 7-15 days for normal order.

Carton Package for courier: DHL/ FEDEX/ TNT/ UPS

Wooden Package for heavy goods, normally ship by sea or air cargo.

Our Certifications

Certification

Dechengwang certified products have been successfully investigated by: ISO9001:2008, RoHS, FDA, Halogen Free, We keep update RoHS, FDA certificate every year to guarantee all of our products are strictly according to these regulation and ensure it application on food filed.

Quality Control

Quality is the foundation of DeChengWang

Quality is the foundation of dechengwang, our commitment to quality is utmost, dechengwang’s success has been based on customer satisfaction, constant product improvement and service excellence. In order to achieve this standard of quality, we’ve invested heavily in a wide range of inspection equipments, effective quality management and monotoring processes that can be relied upon for high quality products. We are pleased to provide full inspection services to ensure parts meet your specifications.

Our Service

Custom PTFE Compoundings

PTFE is modified with the addition of different fillers such as: glass fibers, carbon, graphite, bronze, MoS2, PEEK etc. to improve physical, mechanical, thermal, wearing, electrical and chemical properties.

Custom Machining &Molding capabilities

Dechengwang's machinists have the knowledge & expeariance needed for selecting the best manufacturing method.

Serving a Wide Range of Industries

We served for industries such as aerospace, auto, valves, electric, chemical, engineering, construction and so on.

Our Company

Factory

Add: Bld D, Jinhengrun (Xintang) Industrial Park, Fucheng Street, Longhua District, Shenzhen, Guangdong, China 518110

Office View

Our Office

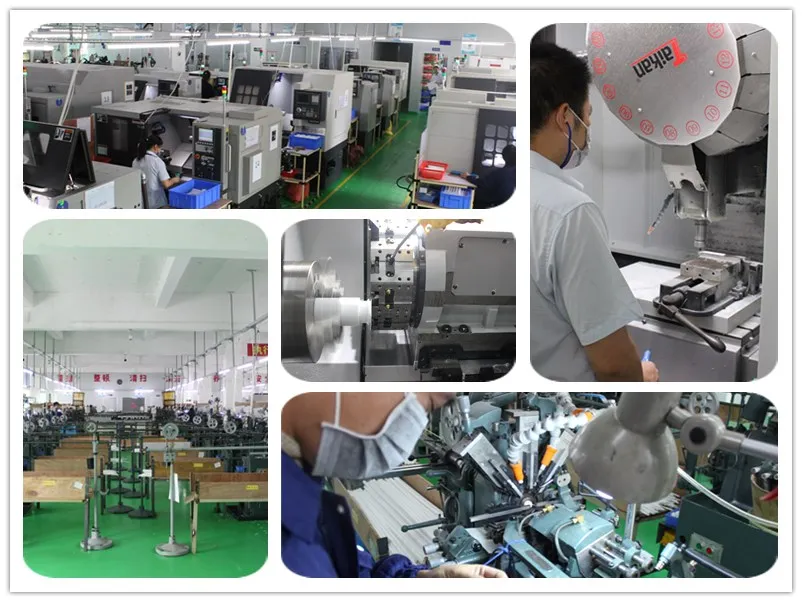

Workshop

Our workshop

Team

Our Team

Customer Photo

Client from all over the world

"Dear Ms. Candice,Have a nice day., First of all, I would like to thank you fast delivery and good quality products. I am very pleased with the quality of the materials used and the workmanship. Doing business with you for the past 3 years has truly been a pleasure. I hope to continue this rewarding relationship for years to come."


"Quality of PTFE is great, better than our previous. Design is 5 stars! Will re-order from you, but need them rounded edges and only one square edge of back tip. Thank you"

Factory Audit

"I recently visited DCW to perform a supplier audit and risk assessment. The employees are treated like family. The staff is diligent in their duties and professional in their execution of them. They can certainly stand alongside any company in the world.I look forward to working with Dechengwang on our current endevour and all possible projects in the future."


Favorable Comment

"I'd like to thank you again for your time and patience yesterday during my visit. Your quality system is very strict, i was impressed. This is perfectly what we are looking for in term of process. It was interesting thank you."


FAQ

Q: Are you trading company or manufacturer?

A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, FDA compliant.

Q: Can you provide free samples?

A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?

A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?

A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?

A: Payment welcome T/T, West Union and Paypal.

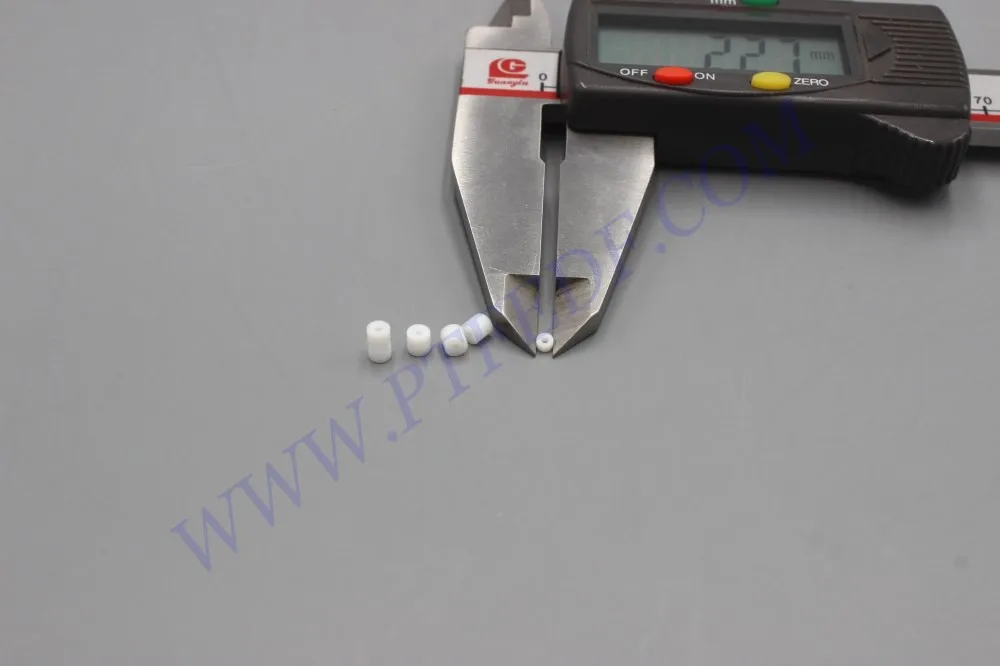

Q: What is your available tolerance?

A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?

A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?

A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?

A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).
