最好的质量价格标准使用的钢筋直螺纹滚轧机

  • 1 - 1 Sets
    $3,900.00
  • >=2 Sets
    $3,800.00
型号:
ORGSJ-185
交期:
数量(Sets) 1 - 1 >1
美国东部时间(天) 30 可协商
定制:
LOGO定制 (Min. Order: 1 Sets)
外包装定制 (Min. Order: 1 Sets)

更多

图案定制 (Min. Order: 1 Sets) 少于
报告可疑活动
概览
简介
保修期:
月年
原产地:
Henan, China
品牌:
橙色的机甲
电压:
380 V
证书:
ISO 9001
应用:
冶金设备, 价格低廉的螺纹滚轧机
重量:
3000千克
尺寸(长×宽×高):
1790*1730 * 1430毫米厘米
功率(瓦):
16.5 千瓦
适用行业:
冶金设备
产品名称:
ORGSJ-200 用螺纹滚轧机
主轴转速 (r/min):
20,25,41,51,64
主动主轴进给速度 (mm/s):
月/秒
最大滚动压力 (kn):
200
滚子最大宽度 (mm):
180
主轴倾斜角:
±10°
主轴中心距 (m):
150 厘米-300 厘米
功能:
液压用螺纹滚轧机
用法:
高品质的二手滚轧机
供应能力
供应能力:
100 Set/Sets per Month
包装与物流
Port
Any port of China
图片示例:
package-img
package-img
交期 :
数量(Sets) 1 - 1 >1
美国东部时间(天) 30 待协商
视频描述
Product Description

Thread Rolling Machine

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This machine is hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

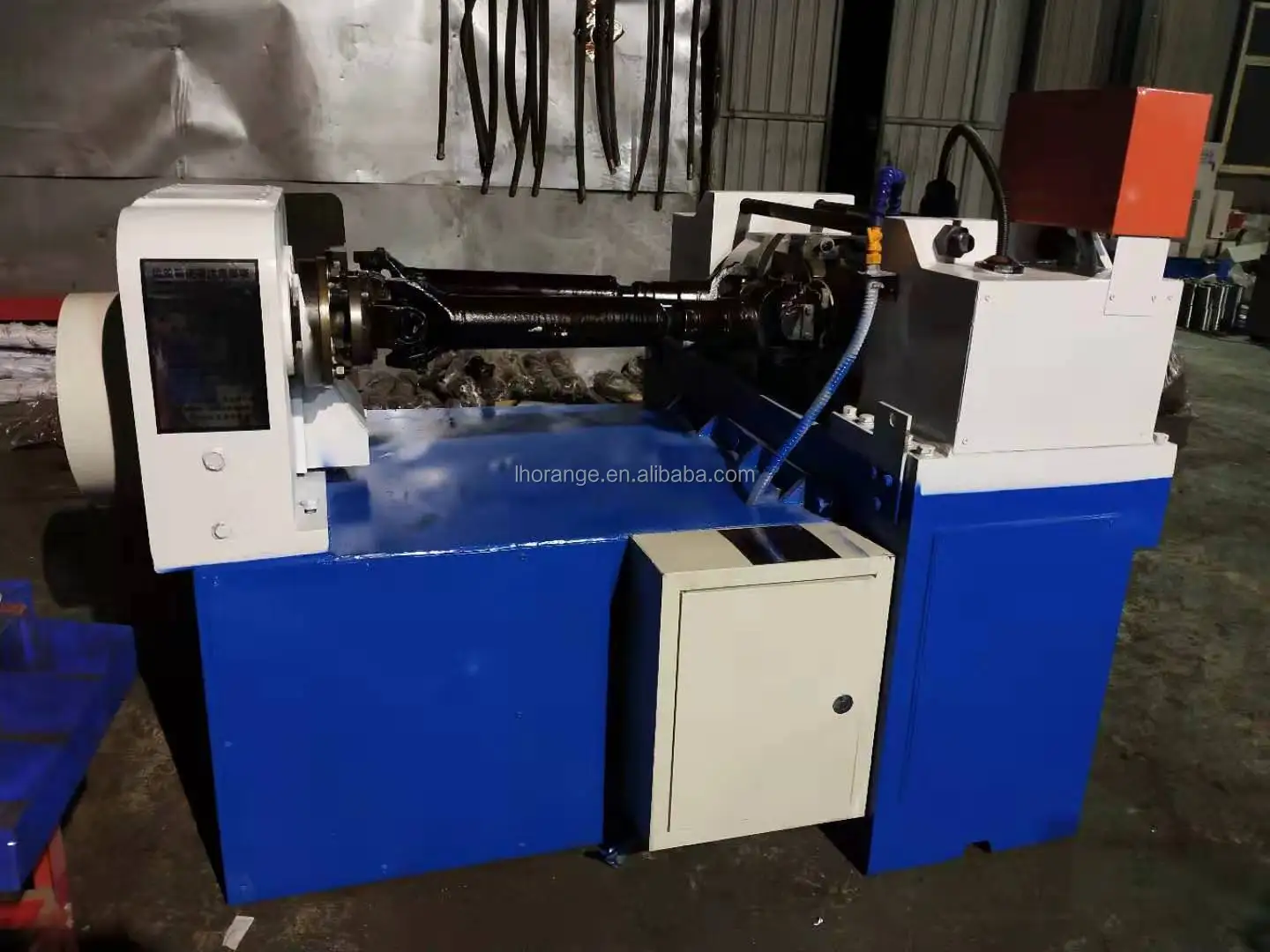

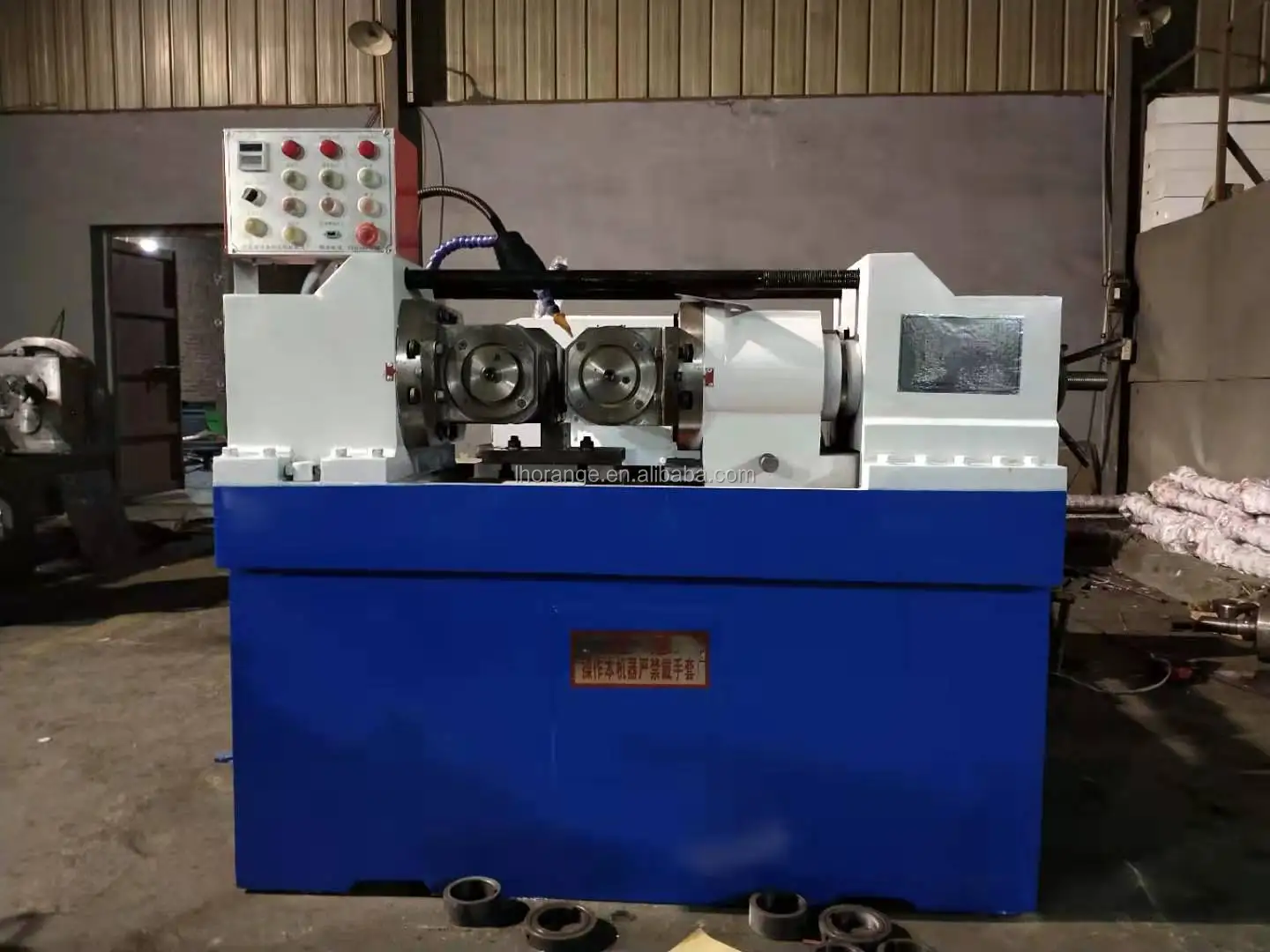

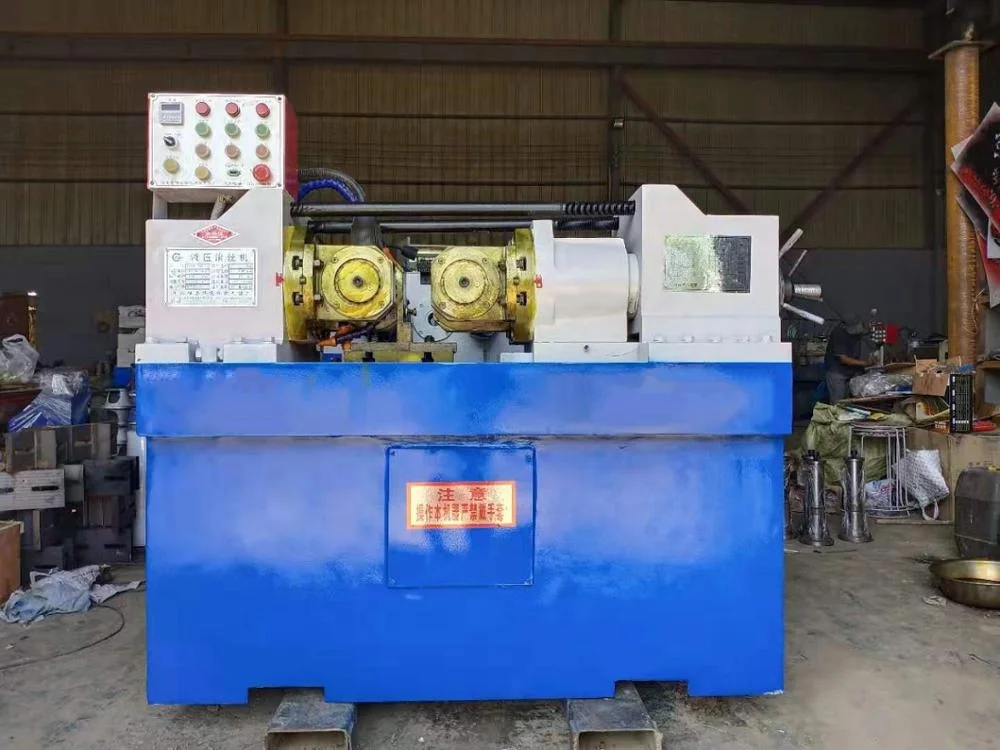

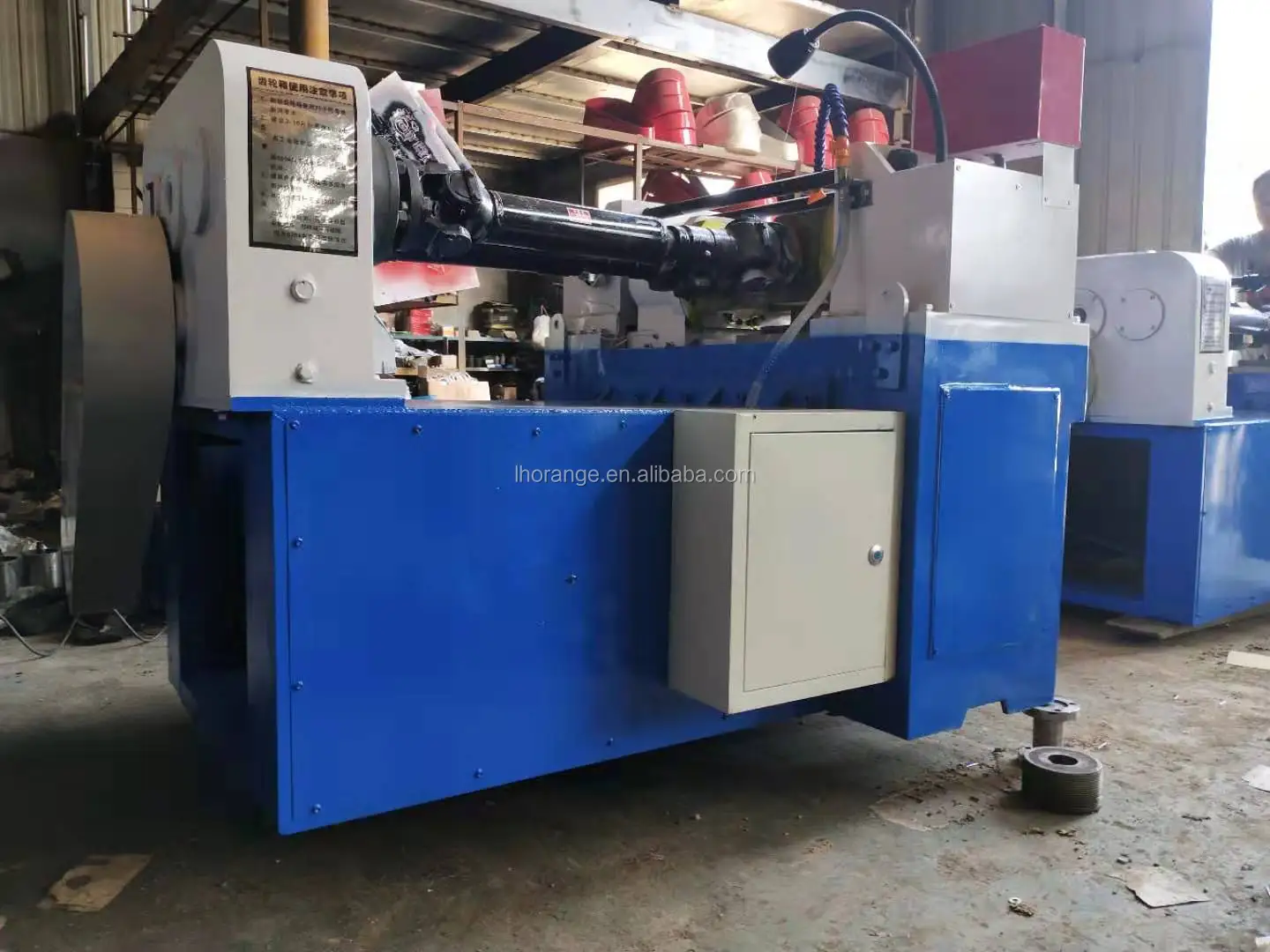

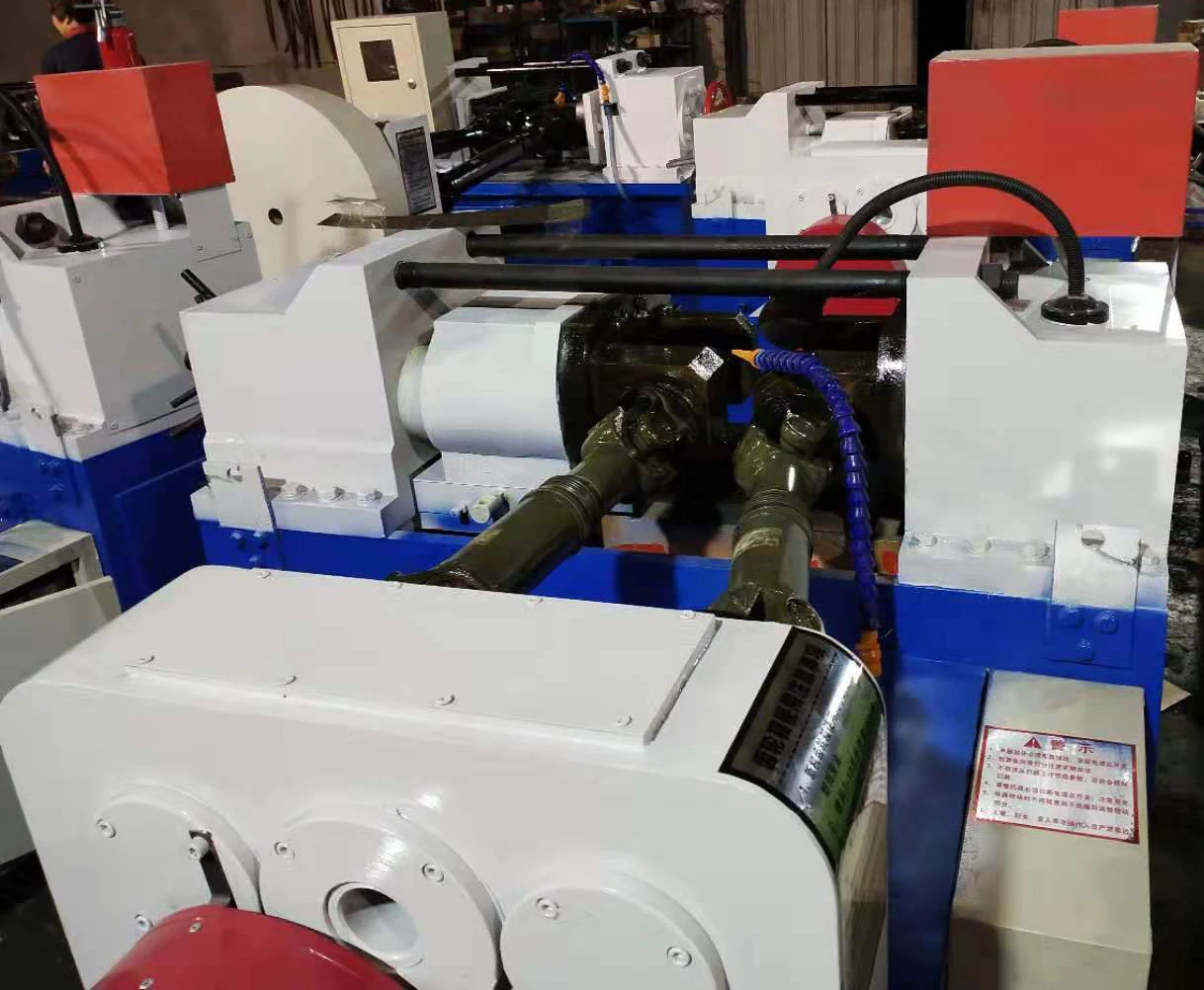

Detailed Image

CHARACTERISTICS:

Thread rolling machine with stable structure, excellent technology, convenient maintenance, reasonable price, welcome by the user's product to the radial and axial machining, match with corresponding processing thread rolling wheel can ordinary bolts, special bolts, tong wire (teeth), the machine structure is reasonable, simple and convenient manipulation, reliable quality, is the production of non-standard thread, standard parts (bolts) ideal equipment.

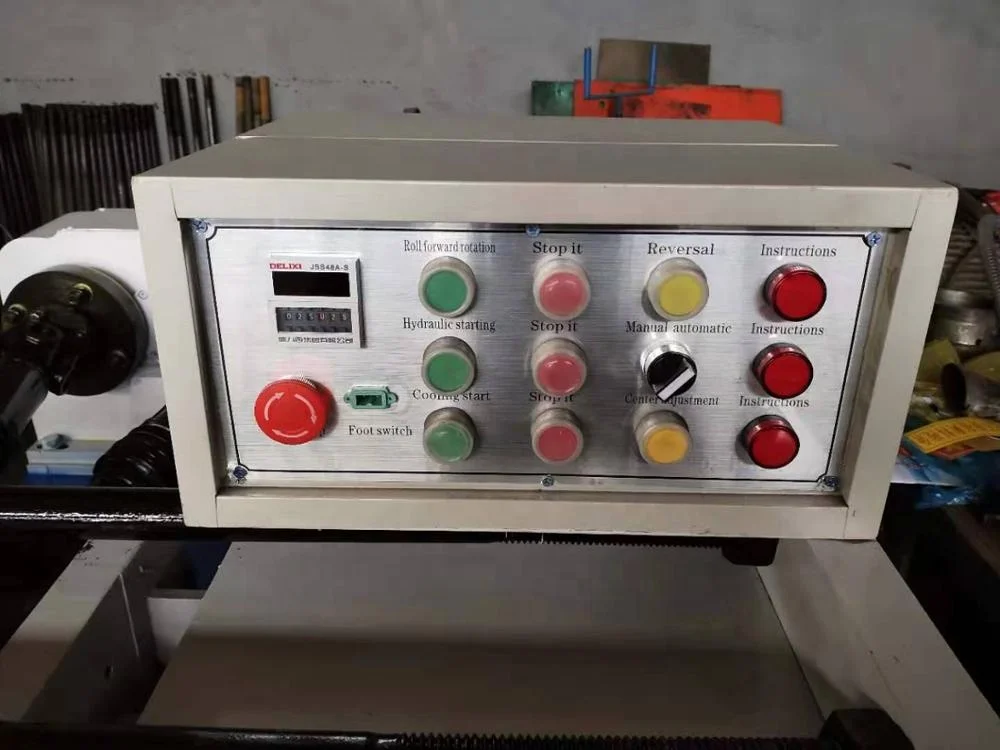

Control Panel


Safe control with emergency button

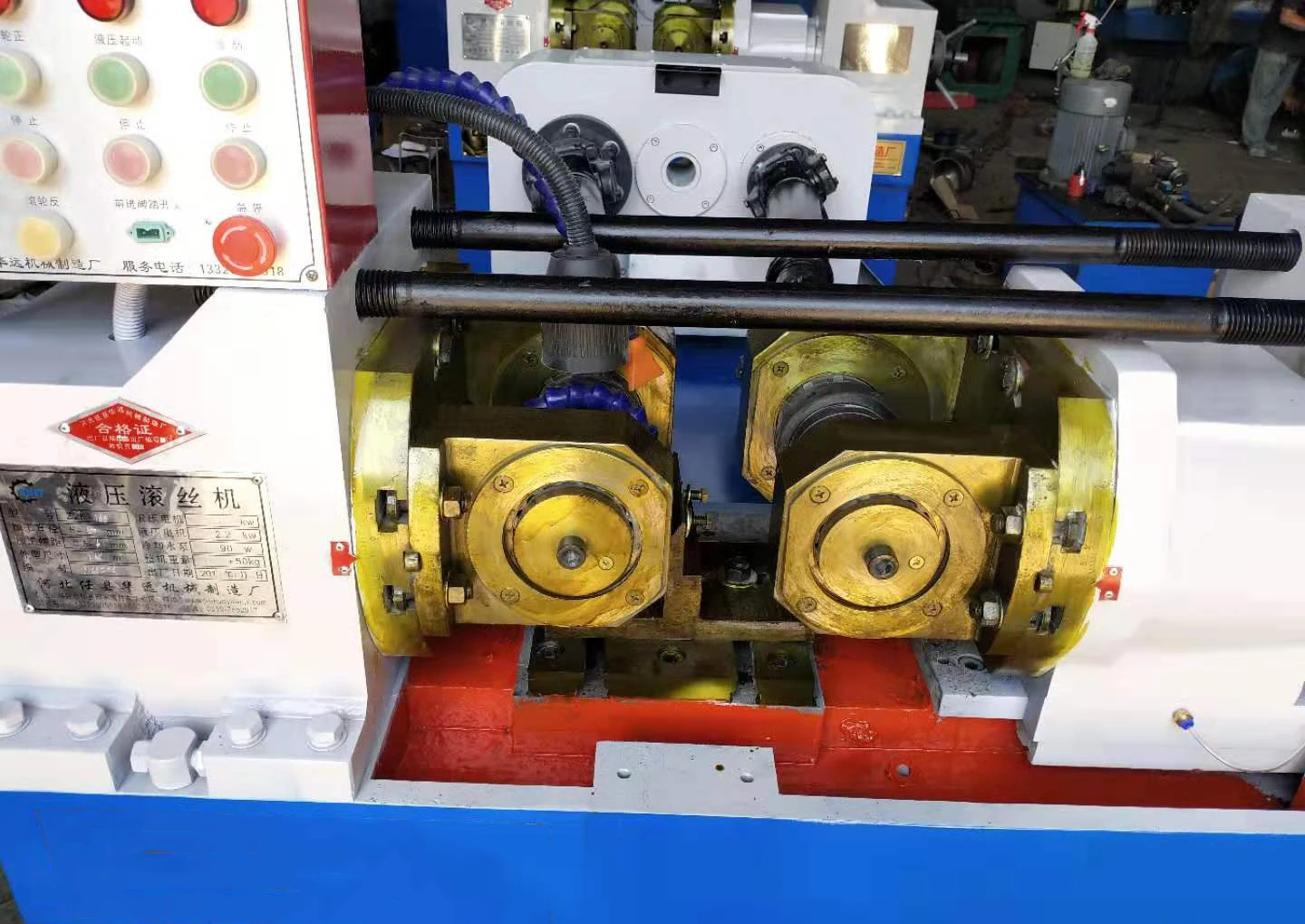

Thread Rollers


Rolling of straight teeth, oblique teeth and helical splines; straightening, reducing diameter, rolling light and all kinds of forming rolling.

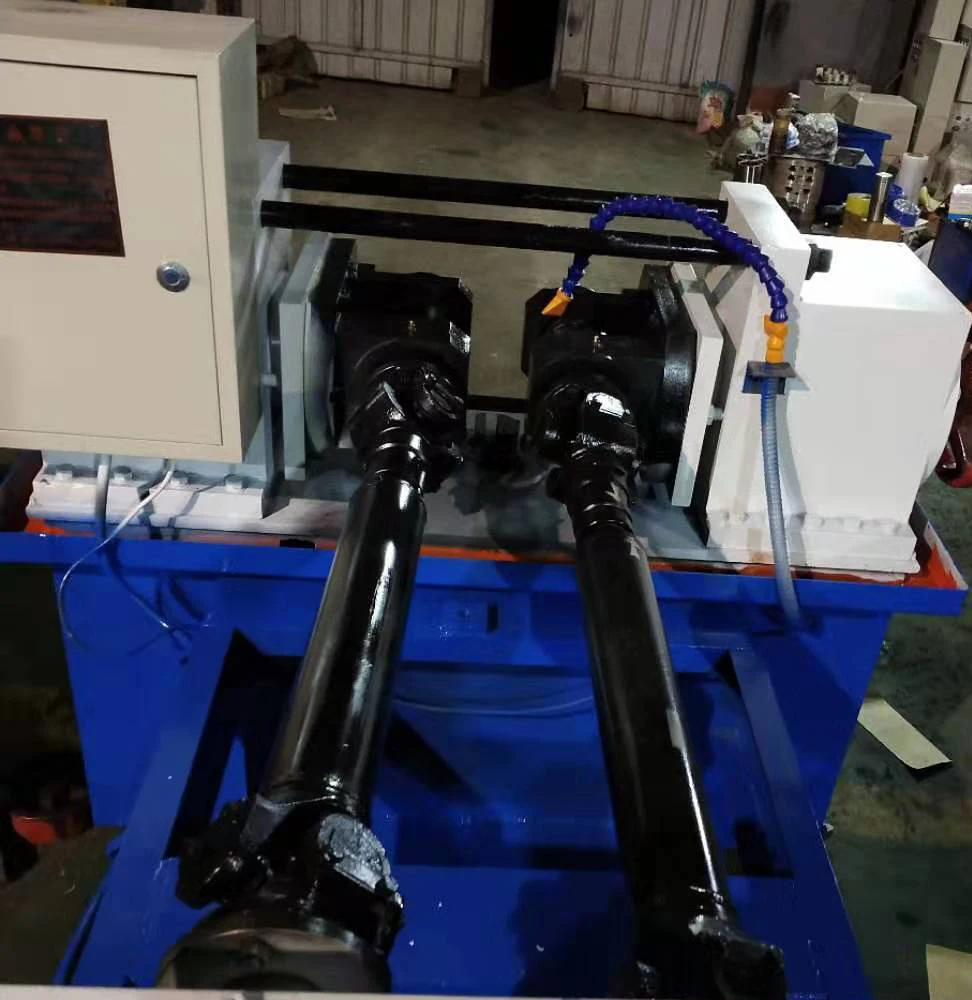

Activities of the main shaft


The two spindles of this machine rotate in the same direction synchronously and the moving spindle is driven by hydraulic force to make the feed motion in the horizontal direction.

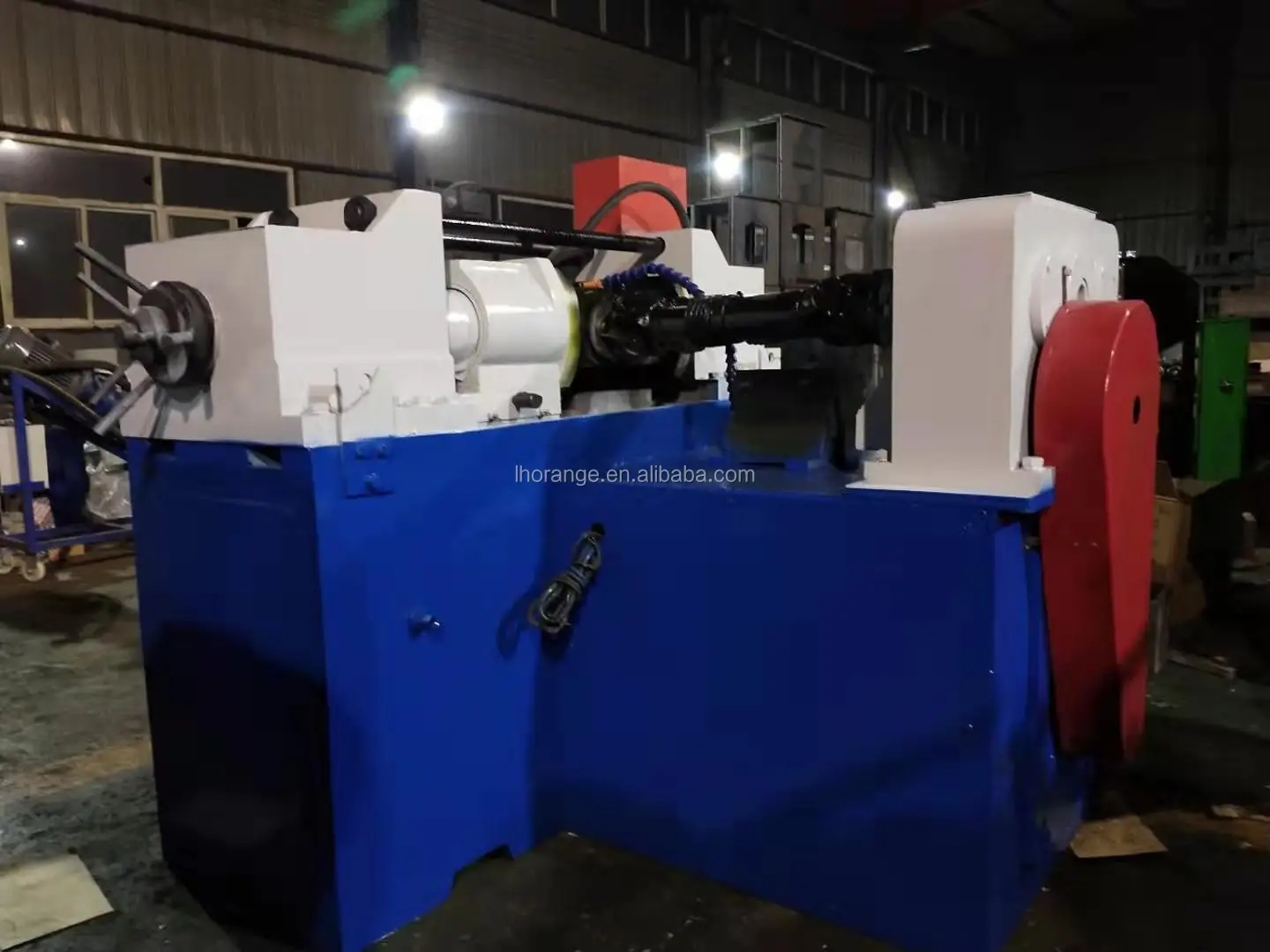

Full casting structure


Cast iron fuselage + excellent steel, long service life

Technical Parameters
Model
ORGSJ-185
ORGSJ-200
Speed of mainshaft(r/min)
20、25、41、51、64
20、25、41、51、64
Active spindle feed speed(mm/s)
5mm/s
5mm/s
Active power(kw)
11
11
Hydraulic power(kw)
4
5.5
Maximum rolling pressure(kn)
180
200
Diameter of rolling material(mm)
φ6-φ65
φ6-φ100
Maximum diameter of roller(mm)
φ190-φ220
φ190-φ220
Aperture of roller(mn)
φ75
φ75
Maximum width of roller(mm)
120
180
Length of thread
unlimited
unlimited
Angle of inclination of principal axis
±5°
±10°
Spindle center distance(m)
120-240
150-300
Total weight(kg)
2000
3000
Dimension(mm)
1600*1330*1650
1790*1730*1430
Recommend Products

130m Depth Price Core Drilling Rig


600m Depth Hydraulic Crawler Drill Rig
Commercial Tray Washing Machine
Our Company
1. Our team.

2.Our workshop:


3.Packing & shipment:


Our Customers
Certifications
Our Services

1.Warranty All the products have one year guarrantee.
2.Training We provide training to make sure every customer can install and operate the machines.
3. Spare parts We provide all spare parts for all machine in lifetime use.
4.Standby Servive We are always ready to help. Just let us know whenever you have questions or problems.


FAQ

Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.

Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 10 years' experience.

Question 3: Can I print my Logo on the machine?
Answer: Yes, sure.

Question 4: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.

Question 5: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer's requirements.


Question 6: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
