Rock core drilling equipment

Types of Rock Core Drilling Equipment

Rock core drilling equipment is used to extract cylindrical samples of rock or other hard geological materials. This is done with the help of a drill bit designed for the job. There are several types of core drilling equipment.

• Rotary Drills:

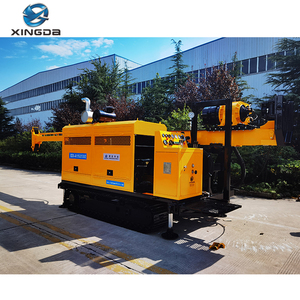

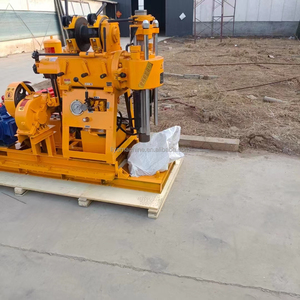

  Rotary Drills use a rotating drill bit to cut through hard rock. These bits sometimes have diamond segs for better and faster cutting. The drill creates a core barrel that collects the rock samples. The two types of rotary drills are core- and wireline-core-retrieval-based rotary drills. In core-retrieval-based rotary drills, the core is taken after each run as a single barrel. On the other hand, wireline-core-retrieval-based rotary drills use a sophisticated technique for core retrieval. Only part of the core is retrieved at a time, and it's retrieved through a wire line.

• Direct Push Drilling:

  Direct Push Drilling (DPD) is a force-based method that uses static push forces to insert a sampling rod into the ground. With this method, there is limited or no rotation, and the costs and time of drilling can be reduced greatly.

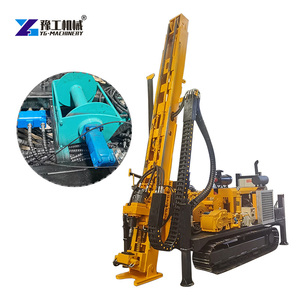

• Diamond Drills:

  Diamond Drills have drill bits with diamond chips sprinkled on them. These types of drills provide better accuracy and smoothness of the drilled hole. Additionally, they can penetrate harder materials. There are two main types: .The drilling mechanism is based on the saw-like action of the bits together with the rotary motion and feeding of the head. In the latter, the diamond bits are given a continuous circulation of water the entire time they are working.

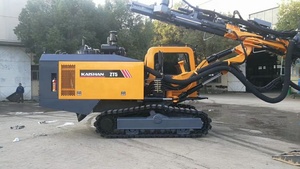

• Down-the-Hole Drills:

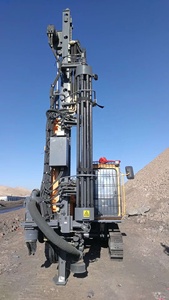

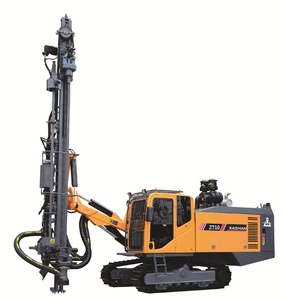

  In Down-the-Hole Drills (DTH), the hammer and drill bit are situated right on the hole bottom. The hammer powers the bit to create holes in tough rocky grounds. When the rock is hit, compressed air comes from the surface to give power to the drill.

Specifications and maintenance of rock core drilling equipment

The main components of core drilling equipment include the drill body, drill bit, drill pipe, core dirller, locking device , and feeding mechanism, etc. Here is a general summary of the specifications corresponding to these parts.

• Drill Body: It provides a platform for other components. There are different types of drill bodies to suit distinct drilling methods and situations, such as vertical and surface drill bodies.

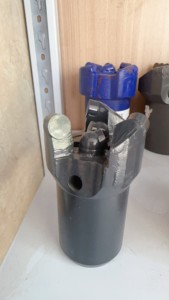

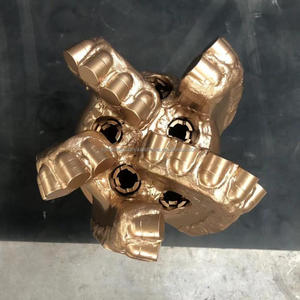

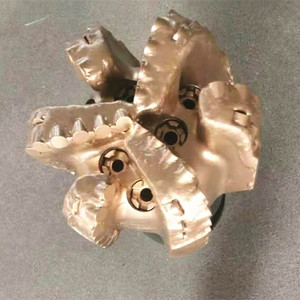

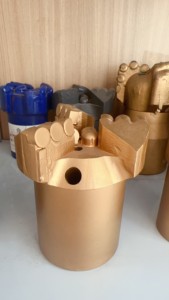

• Drill Bit: The material used for the bit and its diameter vary per rock types and project needs. The bits are usually used for different rock types, such as tungsten carbide and PDC (polycrystalline diamond). The diameter of the drill bits varies with different project requirements, typically from 0.5 to 8 inches.
• Drill Pipe: Its length and material depend on the drilling depth and the rock type. The core drill pipe's standard length is usually around 3 to 5 meters, and the material is often steel.
• Core Barel: Its diameter and length are decided by the volume of rock cores needed and the drilling depth. The common-length range of the core barrel is 3 to 12 meters; its diameter is between 36mm and 124mm.
• Locking Device: Its type and size depend on the drill machine and operation requirement. For example, the quick-lock device is widely used in some rotation-locking combinations.
• Feeding mechanism: Its type and specification depend on the drilling machine and the job requirement. The drill press feeding system is frequently seen with an electric motor drive that has a feed rate of about 0.1 to 1 meters per minute.

Proper maintenance of rock core drilling equipment is critical to ensure its durability, reliability, and efficient operation. Here are some general maintenance tips:

• Regular Inspection: Regularly check for signs of wear, damage, or loose parts. Pay attention to key components, such as the drill bit, drill pipe, locking device, etc. If there's any issue found, please promptly fix it to avoid potential trouble.
• Lubrication: Regularly lubricate moving parts according to the lubricating oil prescribed by the manufacturer. It ensures smooth movement and reduces friction and wear.
• Equipment Cleaning: After use, clean the equipment from dirt, rock debris, and mud. It helps prevent clogging and ensures good heat dissipation.
• Battery Maintenance: For battery-powered rock core drilling equipment, core drill battery maintenance is also essential. Follow the prescribed charging and storage methods, and monitor the battery's state to ensure it is adequately charged.
• Replacement of key parts: Some critical parts of rock core drilling equipment may wear out over time, such as drill bits, bearings, sealing elements, etc. Develop a replacement schedule based on usage and regularly replace worn parts to ensure equipment's good working conditions.

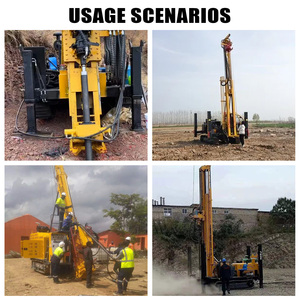

Application Scenarios

Rock core drilling machines have many application scenarios in different industries and fields.

• Geological Exploration

  Core drilling machines can be used to obtain geological samples to conduct geological surveys and explorations. This provides information on soil layers, rock formations, structural composition, mineral distribution, etc. Such information is critical for territory mapping, resource investigation, and finding fault lines.

• Foundation Excavation

  In this civil engineering scenario, this rock drilling machine is used to make anchor holes, pile holes, and clearance holes. Core sampling aids in soil and rock analysis, structural assessment, and finding potential problems. This helps engineers design safe and solid foundations.

• Mining Operations

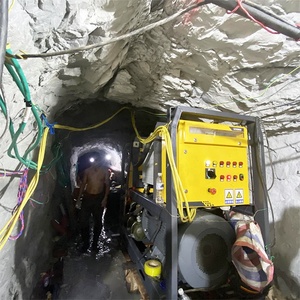

  Core drilling machines are used for mineral sampling, deposit characterization, and drainage or ventilation channel excavation in the mining industry. The drilling results can be used for selecting optimal extraction methods and determining the economic feasibility of mining operations.

• Hydrogeological Studies

  Core drilling aids in the study and characterization of aquifers. It helps locate groundwater, determine aquifer properties, and analyze groundwater quality. This information is essential for water resource management and well design.

• Site Investigation

  Core drilling can be used for site investigation and assessment for various projects such as environmental impact assessments, geotechnical investigations, hazardous waste remediation, and land development. The drilling results provide valuable information for evaluating site conditions and identifying potential risks.

How to choose rock core drilling equipment

When buying rock core drilling equipment for the drill, buyers should start by examining the drill's key parameters. They should start by examining the drilling diameter range. The diameter of the core that needs to be extracted will determine the drilling diameter range that is required. In addition, the depth of the drill also needs to be considered since the depth of the drill is directly related to the device's feeding system and hydraulic system. This also determines whether the device can be used in the required geological conditions.

In addition to this, the type of drill bit will also need to be considered. It is also essential to evaluate the power and torque of the drill. This can impact the drilling speed and efficiency. Further, the drill's weight and dimensions will also need to be considered so that it can be transported and operated with ease in the required environment.

The drill control system needs to be evaluated carefully. This can range from manual to automated systems. Buyers will also need to consider the drill's material and manufacturing process to ensure stability and longevity, and the environmental requirements for using the equipment need to be considered as well.

Once these factors have been considered, buyers can choose based on the specific needs of their geological investigation and their working environment.

Q & A

Q1: What are the trends in rock core drilling technology?

A1: The industry is focused on improving efficiency and reducing environmental impact. More projects use automated and computerized core rock drilling. Such a system enhances drilling accuracy and efficiency. Also, the industry is moving toward environmentally friendly drill fluids and bits. These options reduce turbine emissions and improve energy use.

Q2: What are the limitations of rock core drilling?

A2: The core sampling may not represent the entire formation. This situation may happen in homogeneous rock areas. Also, the method is costly in areas with hard rocks. Further, the technique has depth limitations, and the ability to recover full diameter cores decreases with depth.

Q3: Is it possible to conduct multiple boreholes in one site with rock core drilling?

A3: Yes. It is possible to do multiple boreholes in one site. The drilling equipment is flexible. The team can quickly set it up for new drilling locations. However, the decision will depend on the geologic conditions of the site. Also, the location should be suitable for the planned investigation.

Q4: What are the most commonly used rock types for core samples?

A4: Projects mostly collect samples from igneous, sedimentary, and metamorphic rocks. The team can use the information from these rock types to make conclusions about the area's geological history. Also, the data can be useful for mineral exploration or engineering project design.
